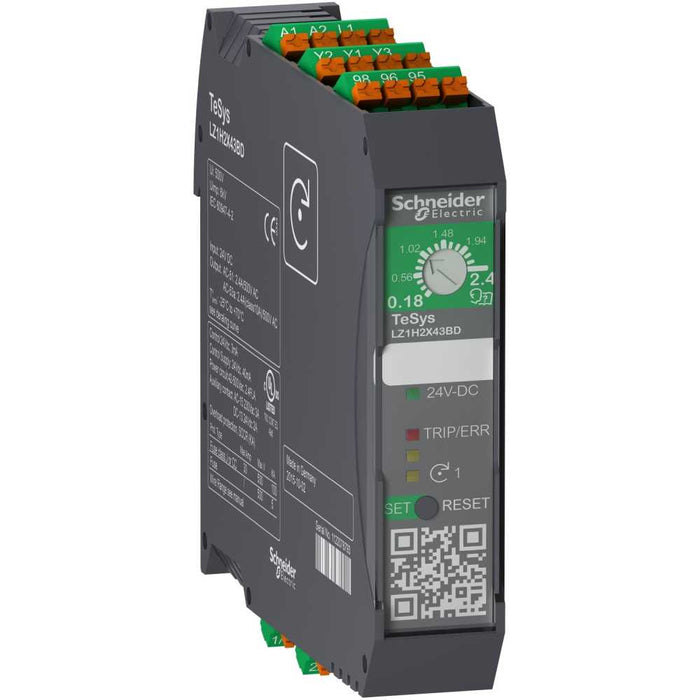

TeSys Starter Hybrid .75kW-400V Control 24VDC Spring

Ideal part number SCHLZ1H2X43BD Manufacturer number LZ1H2X43BD Barcode 3606485420981
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Starter TeSys Hybrid 075kW-400V control 24VDC Spring

TeSys H ultra compact direct starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications

Rated operation power at AC-3, 400 V
0 kW
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie
2 A
Overload release current setting
0.18 A
Supporting protocol for LON
no
Supporting protocol for TCP/IP
no
Supporting protocol for ASI
no
Supporting protocol for PROFIBUS
no
Supporting protocol for CAN
no
Supporting protocol for INTERBUS
no
Supporting protocol for MODBUS
no
Supporting protocol for Data-Highway
no
Supporting protocol for DeviceNet
no
Supporting protocol for SUCONET
no
Supporting protocol for other bus systems
no
Rail mounting possible
yes
Rated control supply voltage DC
24 V
Degree of protection
IP20 (Ip: IP20)
Supporting protocol for SERCOS
no
Supporting protocol for INTERBUS-Safety
no
Release class
CLASS 10
With short-circuit release
no
Type of electrical connection of main circuit
Spring clamp connection
Type of electrical connection for auxiliary- and control current circuit
Spring clamp connection
Supporting protocol for AS-Interface Safety at Work
no
Supporting protocol for DeviceNet Safety
no
Supporting protocol for EtherNet/IP
no
Supporting protocol for Foundation Fieldbus
no
Supporting protocol for PROFINET CBA
no
Supporting protocol for PROFINET IO
no
Supporting protocol for PROFIsafe
no
Supporting protocol for SafetyBUS p
no
Voltage type for actuating
DC
Type of motor starter
Direct starter
Rated operation power at AC-3, 230 V, 3-phase
0 kW
Rated power, 460 V, 60 Hz, 3-phase
0 kW
Rated operation current at AC-3, 400 V
2 A
Ambient temperature, upper operating limit
70 °C
Temperature compensated overload protection
yes
