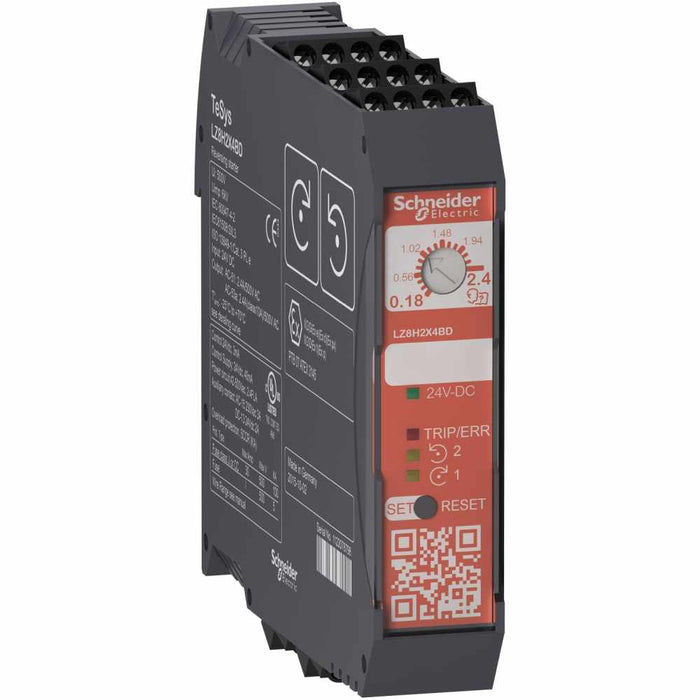

TeSys Rev Starter Hybrid Safe-Torque-Off .75kW-400 Con 24VDC

Ideal part number SCHLZ8H2X4BD Manufacturer number LZ8H2X4BD Barcode 3606485421094
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Reversing Starter TeSys Hybrid Safe-Torque-Off 075kW-400V control 24VDC

TeSys H ultra compact reverse safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh).

Technical specifications

Rated operation power at AC-3, 400 V
0 kW
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie
2 A
Overload release current setting
0.18 A
Supporting protocol for LON
no
Supporting protocol for TCP/IP
no
Supporting protocol for ASI
no
Supporting protocol for PROFIBUS
no
Supporting protocol for CAN
no
Supporting protocol for INTERBUS
no
Supporting protocol for MODBUS
no
Supporting protocol for Data-Highway
no
Supporting protocol for DeviceNet
no
Supporting protocol for SUCONET
no
Supporting protocol for other bus systems
no
Rail mounting possible
yes
Rated control supply voltage DC
24 V
Degree of protection
IP20 (Ip: IP20)
Supporting protocol for SERCOS
no
Supporting protocol for INTERBUS-Safety
no
Release class
CLASS 10
With short-circuit release
no
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Supporting protocol for AS-Interface Safety at Work
no
Supporting protocol for DeviceNet Safety
no
Supporting protocol for EtherNet/IP
no
Supporting protocol for Foundation Fieldbus
no
Supporting protocol for PROFINET CBA
no
Supporting protocol for PROFINET IO
no
Supporting protocol for PROFIsafe
no
Supporting protocol for SafetyBUS p
no
Voltage type for actuating
DC
Type of motor starter
Reversing starter
Rated operation power at AC-3, 230 V, 3-phase
0 kW
Rated power, 460 V, 60 Hz, 3-phase
0 kW
Rated operation current at AC-3, 400 V
2 A
Ambient temperature, upper operating limit
70 °C
Temperature compensated overload protection
yes
