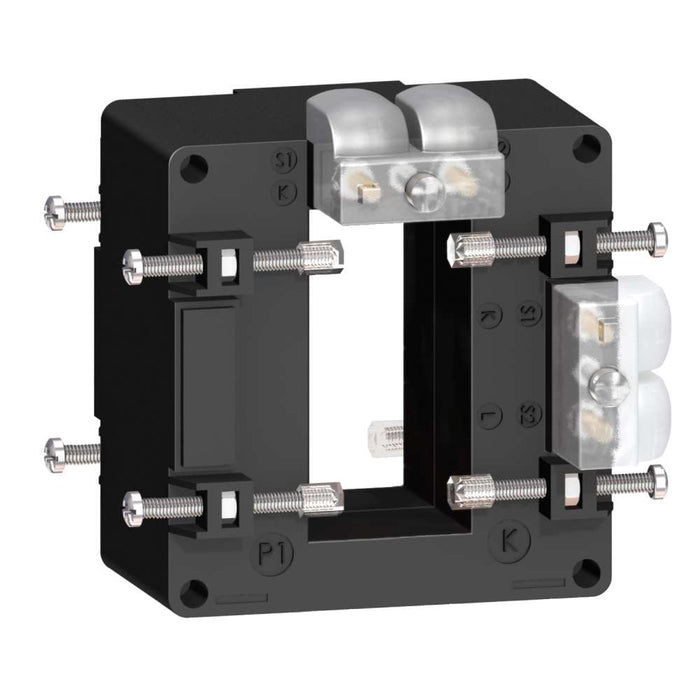

Current Transformer Tropic 600 5 Dual Output Bars 32x65
Schneider Electric

Current Transformer Tropic 600 5 Dual Output Bars 32x65

Ideal part number SCHMETSECT5DA06 Manufacturer number METSECT5DA060 Barcode 3303431123650
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

current transformer tropicalised 600 5 double output for bars 32x65

This current transformer, tropicalised for busbar, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 65 mm x 32 mm opening. Compatible with a single output for bar: 65 mm x 32 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 12 VA.

Technical Specifications

Model
Attachable current transformer
Number of primary inputs
1
With copper rail
no
Rated primary current
600 A
Snap mounting
no
Rated secondary apparent power
12 VA
Rated secondary current
5 A
Overcurrent limiting factor
FS 5
With shock protection
no
