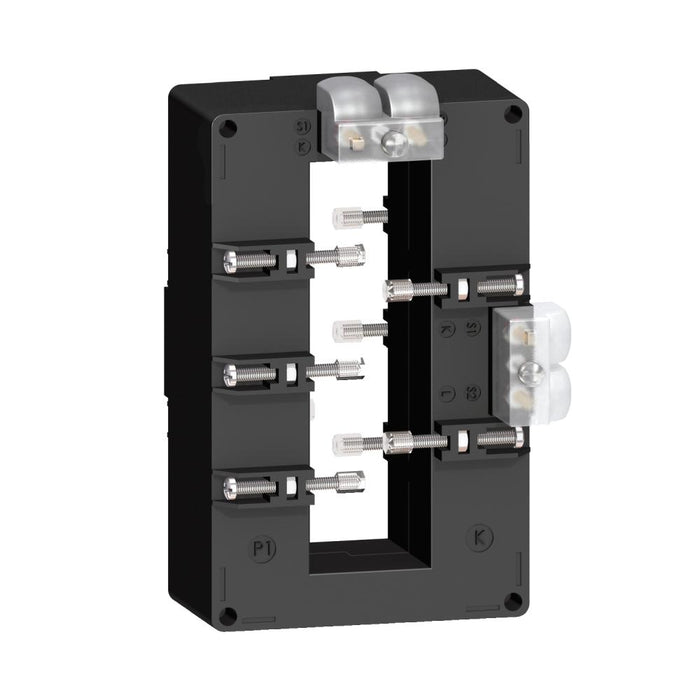

Current Transformer Tropic 2000 5 Dual Output Bars 38x127
Ideal Part Number SCHMETSECT5DB20
Manufacturer Number METSECT5DB200
Barcode 3303431123759
Product Details
current transformer tropicalised 2000 5 double output for bars 38x127
This current transformer, tropicalised for busbar, has a line rated current of 2000 A and a secondary current rating of 5 A. This current transformer do have a 38 mm x 127 mm opening. Compatible with a single output for bar: 127 mm x 38 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA, class 1 maximum power: 20 VA.
This current transformer, tropicalised for busbar, has a line rated current of 2000 A and a secondary current rating of 5 A. This current transformer do have a 38 mm x 127 mm opening. Compatible with a single output for bar: 127 mm x 38 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA, class 1 maximum power: 20 VA.
