Current Transformer Tropic 3000 5 Dual Output Bars 38x127
Schneider Electric

Current Transformer Tropic 3000 5 Dual Output Bars 38x127

Ideal part number SCHMETSECT5DB30 Manufacturer number METSECT5DB300 Barcode 3303431123773
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

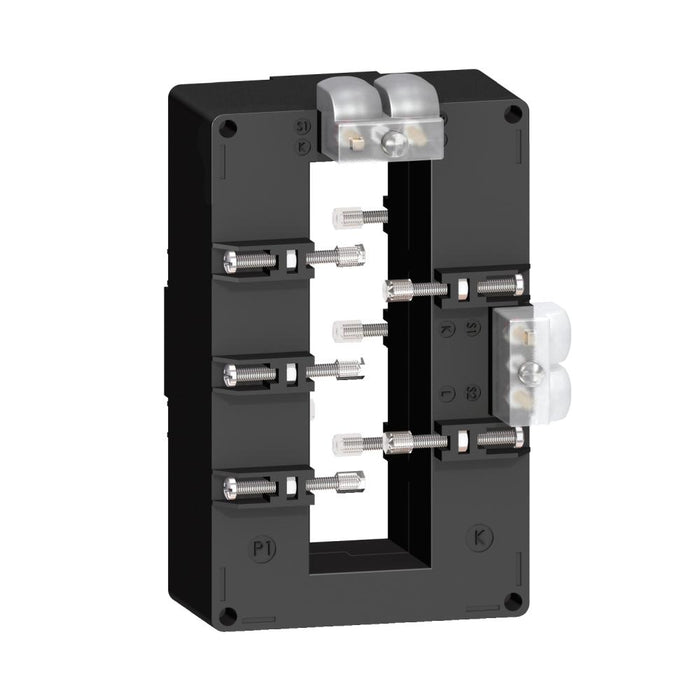

current transformer tropicalised 3000 5 double output for bars 38x127

This current transformer, tropicalised for busbar, has a line rated current of 3000 A and a secondary current rating of 5 A. This current transformer do have a 38 mm x 127 mm opening. Compatible with a single output for bar: 127 mm x 38 mm. Burden and accuracy class as follows: class 0.5 maximum power: 25 VA, class 1 maximum power: 30 VA.

Technical specifications

Model
Attachable current transformer
Number of primary inputs
1
With copper rail
no
Rated primary current
3000 A
Snap mounting
no
Rated secondary apparent power
30 VA
Rated secondary current
5 A
Overcurrent limiting factor
FS 5
With shock protection
no
