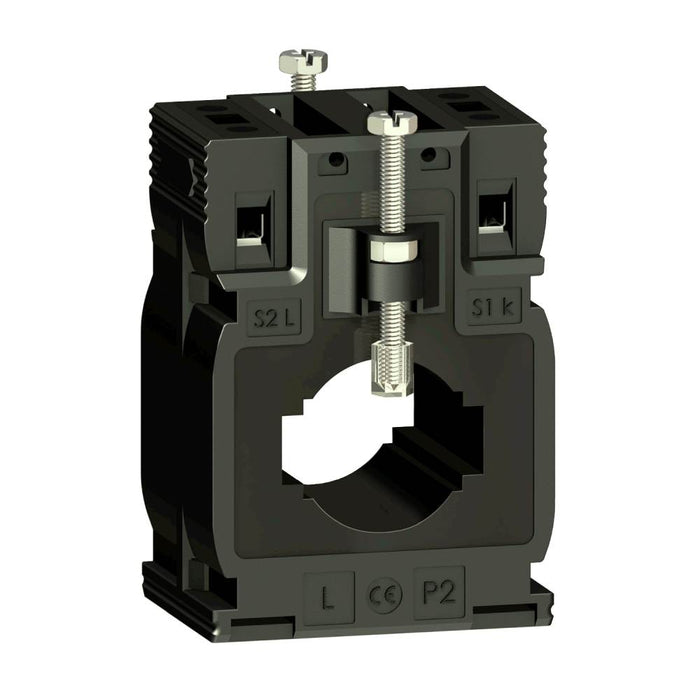

Current Transformer Tropic Din 300 5 Mix D 27 Bars Mult
Product Details
current transformer tropicalised DIN mount 300 5 cables d. 27 - bars 10x32 15x25
This current transformer, tropicalised for busbar and cable, has a line rated current of 300 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 27 mm. Compatible with a double output for bar: 32.5 mm x 10.5 mm or 25.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 10 VA.
This current transformer, tropicalised for busbar and cable, has a line rated current of 300 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 27 mm. Compatible with a double output for bar: 32.5 mm x 10.5 mm or 25.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 10 VA.
