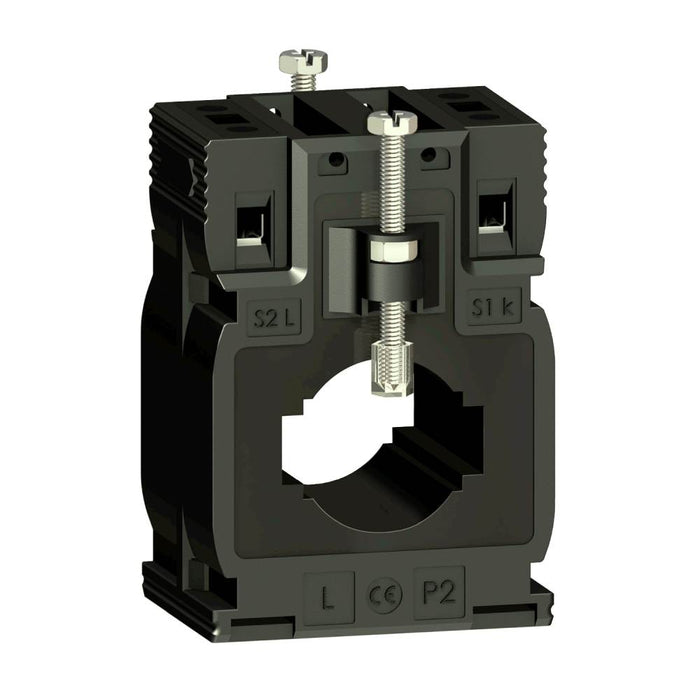

Current Transformer Tropic Din 400 5 Mix D 27 Bars Mult
Schneider Electric

Current Transformer Tropic Din 400 5 Mix D 27 Bars Mult

Ideal part number SCHMETSECT5MA04 Manufacturer number METSECT5MA040 Barcode 3606480618819
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

current transformer tropicalised DIN mount 400 5 cables d. 27 - bars 10x32 15x25

This current transformer, tropicalised for busbar and cable, has a line rated current of 400 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 27 mm. Compatible with a double output for bar: 32.5 mm x 10.5 mm or 25.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA.

Technical specifications

Model
Attachable current transformer
Opening diameter
27 mm
Number of primary inputs
1
With copper rail
no
Rated primary current
400 A
Snap mounting
no
Rated secondary apparent power
12 VA
Rated secondary current
5 A
Overcurrent limiting factor
FS 5
With shock protection
no
