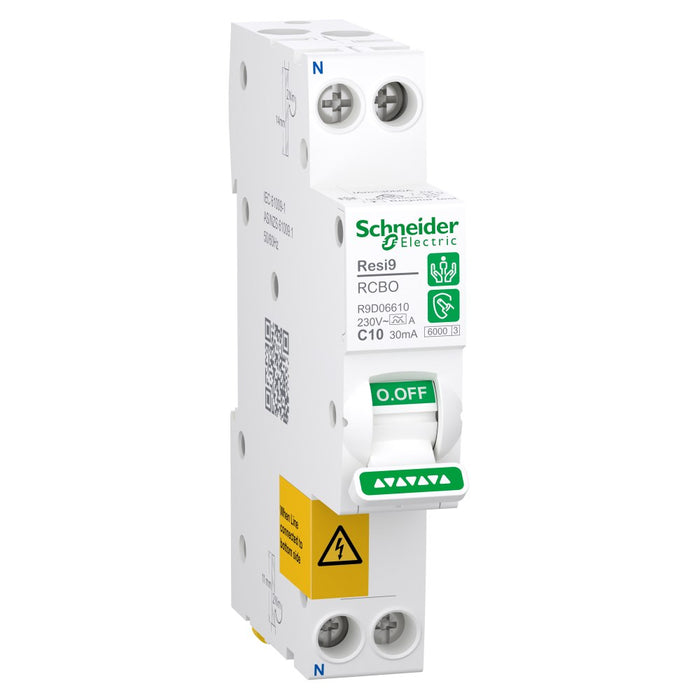

Resi9 RCBO Slim 1P+N C 10A 30mA 6kA Type A
Schneider Electric

Resi9 RCBO Slim 1P+N C 10A 30mA 6kA Type A

Ideal part number SCHR9D06610 Manufacturer number R9D06610 Barcode 3606481068958
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Residual current breaker with overcurrent protection (RCBO), Resi9, 1 pole + neutral, 10A, C curve, 6000A, A type, 30mA, 18mm wide

This Resi9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 10A rated current (In) at 30°C conforming to AS/NZS 61009.1 standard and the C tripping curve. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous.

Technical specifications

Voltage type
AC
Built-in depth
44 mm
Rated current
10 A
Rated voltage
230 V
Release characteristic
C
Rated insulation voltage Ui
440 V
Rated fault current
0 A
Leakage current type
A
Surge current capacity
0 kA
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Frequency
50/60 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
yes
Connectable conductor cross section solid-core
1.16 mm²
Connectable conductor cross section multi-wired
1.1 mm²
With interlocking device
yes
Ambient temperature during operating
-25 °C
Flush-mounted installation
no
Number of poles
2 (Total: 2)
Anti-nuisance tripping version
no
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Disconnection characteristic
Undelayed
