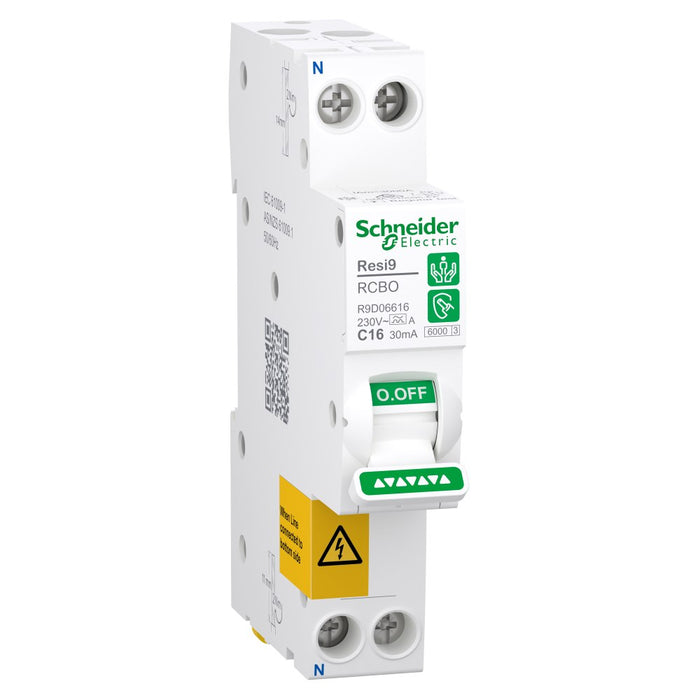

Resi9 RCBO Slim 1P+N C 16A 30mA 6kA Type A

Resi9 RCBO Slim 1P+N C 16A 30mA 6kA Type A

by Schneider Electric
Ideal Part Number SCHR9D06616 Manufacturer Number R9D06616 Barcode 3606481068965

Product Details

Residual current breaker with overcurrent protection (RCBO), Resi9, 1P+N, 16A, C curve, 6000A, A type, 30mA, 18mm wide

This Resi9 product is a residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A rated current (In) at 30°C conforming to AS/NZS 61009.1 standard and the C tripping curve. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Built-in depth
44
Rated current
16
Rated voltage
230
Release characteristic
C
Rated insulation voltage Ui
440
Rated fault current
0
Leakage current type
A
Surge current capacity
0
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Frequency
50/60 Hz
Degree of protection (IP)
IP20
Number of protected poles
1
Concurrently switching neutral conductor
yes
Connectable conductor cross section solid-core
1.16
Connectable conductor cross section multi-wired
1.1
With interlocking device
yes
Ambient temperature during operating
-25
Flush-mounted installation
no
Number of poles (total)
2
Anti-nuisance tripping version
no
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
6
Disconnection characteristic
Undelayed
Standard(s)
IEC 61009-2-2 EN/IEC 61009-1 AS/NZS 61009.1
Built-in depth (unit)
mm
Rated current (unit)
A
Rated voltage (unit)
V
Rated insulation voltage Ui (unit)
V
Rated fault current (unit)
A
Surge current capacity (unit)
kA
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Ambient temperature during operating (unit)
°C
Rated impulse withstand voltage Uimp (unit)
kV
Rated short-circuit breaking capacity Icn according to EN 61009-1 (unit)
kA
