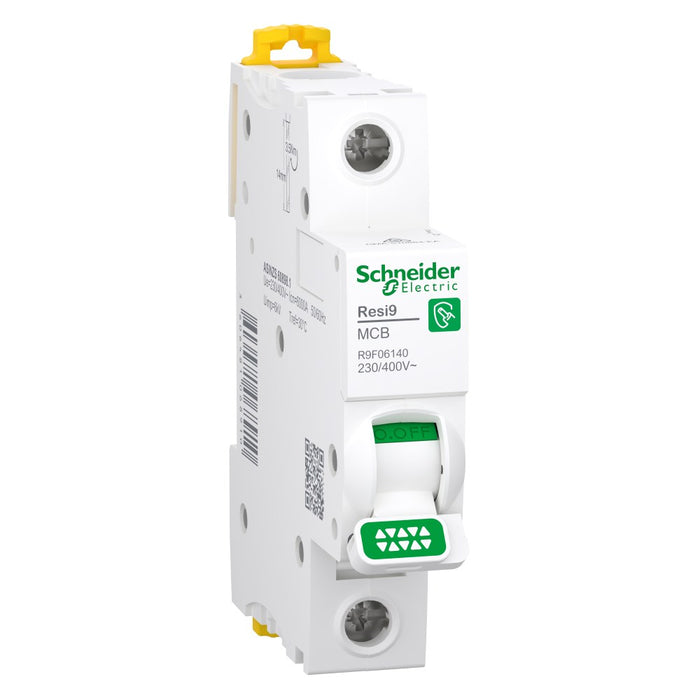

Resi9 MCB 1P 40A 6kA C-Curve
Schneider Electric

Resi9 MCB 1P 40A 6kA C-Curve

Ideal part number SCHR9F06140 Manufacturer number R9F06140 Barcode 3606481068910
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Miniature circuit breaker (MCB), Resi9, 1P, 40A, C curve, 6000A (AS/NZS 60898)

This Resi9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 40A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to AS/NZS 60898 standard.

Technical specifications

Voltage type
AC
Built-in depth
44 mm
Rated current
40 A
Rated voltage
230 V
Frequency
50 Hz
Release characteristic
C
Rated insulation voltage Ui
500 V
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Explosion-proof
no
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
no
Connectable conductor cross section solid-core
1.35 mm²
Connectable conductor cross section multi-wired
1.25 mm²
Ambient temperature during operating
-25 °C
Flush-mounted installation
no
Additional equipment possible
no
Number of poles
1 (Total: 1)
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated impulse withstand voltage Uimp
4 kV
