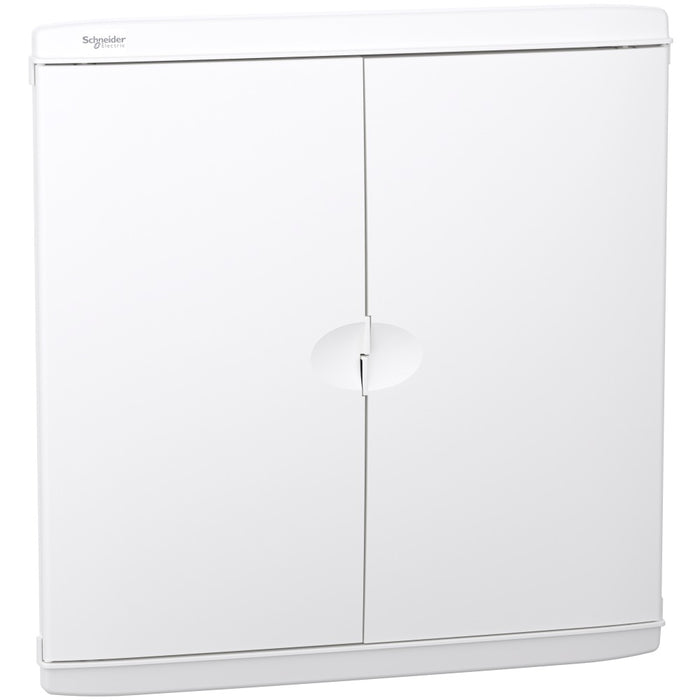

Resi9 Consumer Switchboard 2Row 30Way Flush Mount
Schneider Electric

Resi9 Consumer Switchboard 2Row 30Way Flush Mount

Ideal part number SCHR9HSB215F Manufacturer number R9HSB215F Barcode 3606486108178
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Distribution Board Enclosure, Resi9, type 2, 2 row, 30 ways, Flush Mounting

Resi9 switchboard enclosure is flush mounted. The rated current is 100A. This switchboard is composed of 2 rows of 15 modules of 18mm (30 modules total). It has plain double door with door opening on both left and right The provided equipment are earthing bar, neutral bar, circuit identification label and blanking plate.

Technical specifications

Mounting method
Flush mounted
Colour
White
Width
376 mm
Height
392 mm
Depth
104 mm
RAL-number
9003
With mounting plate
no
Number of rows
2
Type of covering
Door
EMC-version
no
Extension possible
no
DIN-rail
yes
Housing material
Plastic
Width in number of modular spacings
30
Type of closure
Other
Degree of protection
IP40 (Ip: IP40)
Transparent cover/door
no
With lock
no
Cover model
Closed
Earthing terminal block
yes
Neutral terminal block
yes
Signal passing door
no
