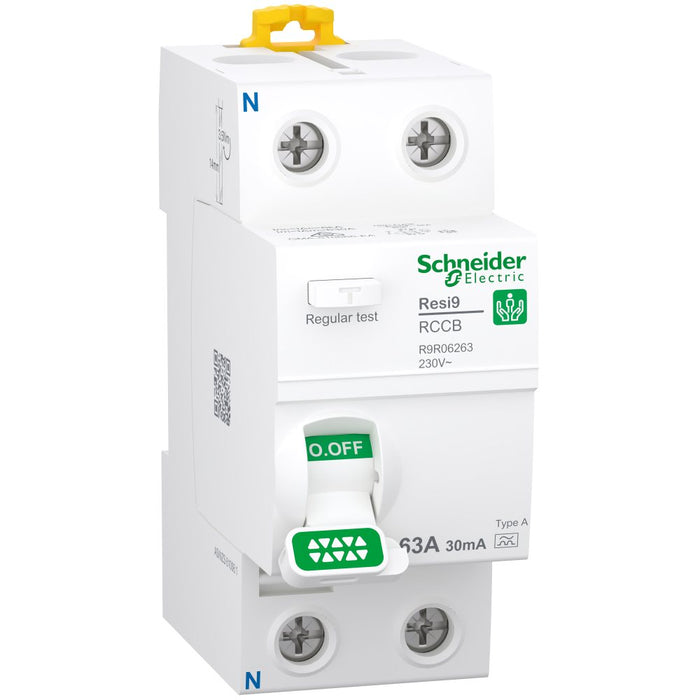

Resi9 RCCB 2P 63A 30mA Type A
Schneider Electric

Resi9 RCCB 2P 63A 30mA Type A

Ideal part number SCHR9R06263 Manufacturer number R9R06263 Barcode 3606481068934
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Residual current circuit breaker (RCCB), Resi9, 2P, 63A, A type, 30mA

This Resi9 product is a residual current circuit breaker (RCCB). It is a 2P RCCB with 63A In rated current, a sensitivity of 30mA with A type protection class. The earth-leakage protection time delay is instantaneous. The (Im/IΔm) rated breaking and making short circuit capacity is 630A. The (Inc/IΔc) rated conditional rated short circuit current is 6kA. The electrical endurance is going up to 4000 cycles and mechanical endurance is going up to 10000 cycles. This product protects against electrical shock by direct or indirect contact and fire hazards. It is also compulsory for all equipment in bathrooms, outdoors.

Technical specifications

Mounting method
DIN rail
Voltage type
AC
Built-in depth
44 mm
Rated current
63 A
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Number of poles
2
Rated fault current
0 A
Leakage current type
A
Selective protection
no
Surge current capacity
0 kA
Pollution degree
2
Width in number of modular spacings
2
Short-time delayed tripping
no
Explosion-proof
no
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Connectable conductor cross section solid-core
1.35 mm²
Connectable conductor cross section multi-wired
1.25 mm²
With interlocking device
yes
Ambient temperature during operating
-25 °C
Additional equipment possible
no
Rated impulse withstand voltage Uimp
4 kV
