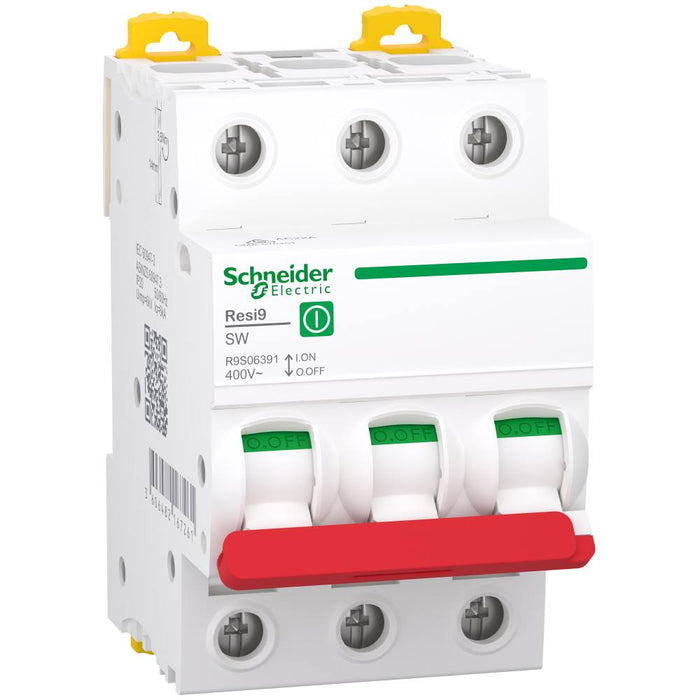

Resi9 Main Switch 3P 100A

Product Details

Switch Disconnector (Isolator) , Resi9, 3 Pole, 100A

This Resi9 product is a switch disconnector. It is a 3P switch disconnector with 100A In rated current. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. It is targeted to residential for individual and collective buildings.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Switching function
Control switch
With signal lamp
no
Built-in depth
44 mm
Rated current
100 A
Rated voltage
400 V
Number of poles
3
Short-circuit breaking capacity
1 kA (Icw: 1)
Rated switching capacity
5 kA
Width in number of modular spacings
3
Imprint/indication
None
Colour calotte
White
Min. rated voltage
400 V
Degree of protection
IP20 (Ip: IP20)
Number of contacts as normally open contact
3
