Resi9 IDPN N Arc 25A 1PN C 6000A Arc Fault Detector
Schneider Electric

Resi9 IDPN N Arc 25A 1PN C 6000A Arc Fault Detector

Ideal part number SCHR9TDB3625 Manufacturer number R9TDB3625 Barcode 3606482167315
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

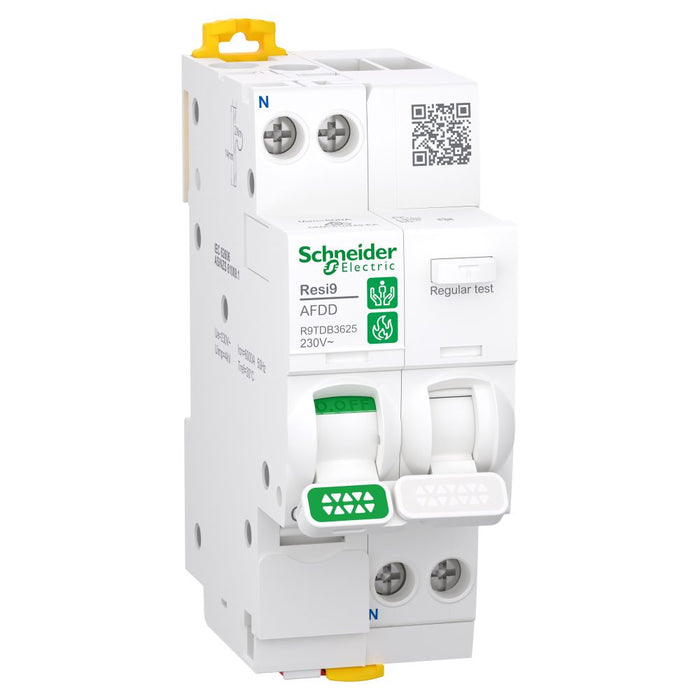

Arc Fault Detection RCBO, Resi9, 1P+N, 25A, 30mA, C Curve, 6000A, A type, All-in-one

This Resi9 product is an arc fault detection RCBO. It is a 1P+N circuit breaker with 1 protected pole, 25A rated current (In) at 30°C and C tripping curve. The operating frequency is 50Hz. The earth leakage protection class is type A with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The breaking capacity (Icn) is up to 6000A at 230VAC with operating frequency of 50Hz, conforming to AS/NZS 61009.1 standard. This Resi9 circuit breaker is compatible with TN-S, TT and IT earthing system. It has a position contact indication suitable for industrial isolation. . The connection allows rigid copper cables from 1mm² to 16mm². It has a tunnel type terminal connection at top or bottom. The connection allows flexible copper cables from 1mm² to 10mm².

Technical specifications

Frequency
50 Hz
Built-in depth
44 mm
Rated current
25 A
Rated voltage
230 V
Release characteristic
C
Number of poles
2
Rated fault current
0 A
Leakage current type
A
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Degree of protection
IP20 (Ip: IP20)
Concurrently switching neutral conductor
yes
Additional equipment attached at delivery
Fire protection switch
Rated short-circuit breaking capacity according to EN 61009
6 kA
