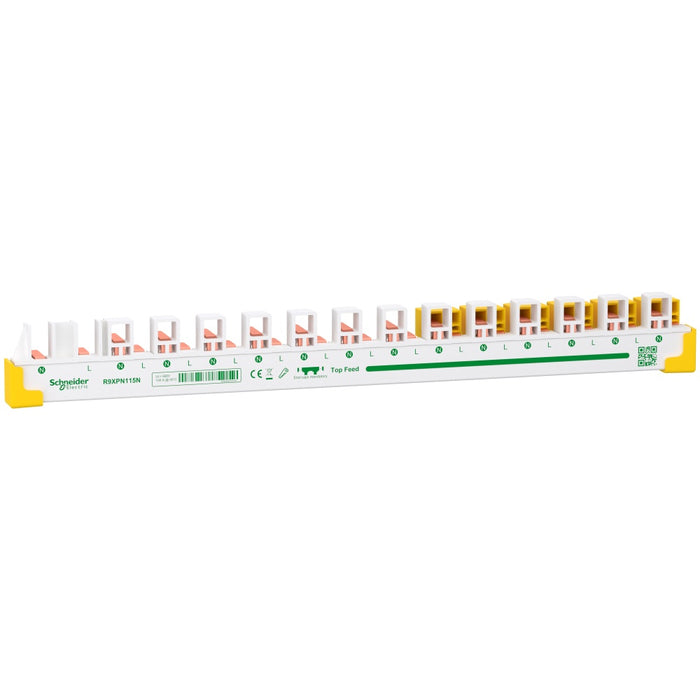

Resi9 1PN busbar 15M with NTB & Acc

Resi9 1PN busbar 15M with NTB & Acc

by Schneider Electric

Product Details

Comb Busbar, Resi9, 1P+N, 15 modules, 100 A with N block and accessories

Resi9 busbar is slim type top feed comb busbar for row with incomer The rated current is 100A. It is 1P+N and 15 modules. Comb busbar mounting mode is horizontal and cuttable. The provided equipment are connector, neutral terminal block and tooth covers.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Colour
White
Insulated
yes
Number of phases
1
Rated permanent current Iu
100 A
Number of poles
2
Length
324 mm
Conditioned rated short-circuit current Iq
6 kA
Type of electric connection
Pin
Suitable for devices with auxiliary switch
no
Suitable for devices with N-conductor
yes
Max. rated operation voltage Ue
230 V
Module width
9 mm
