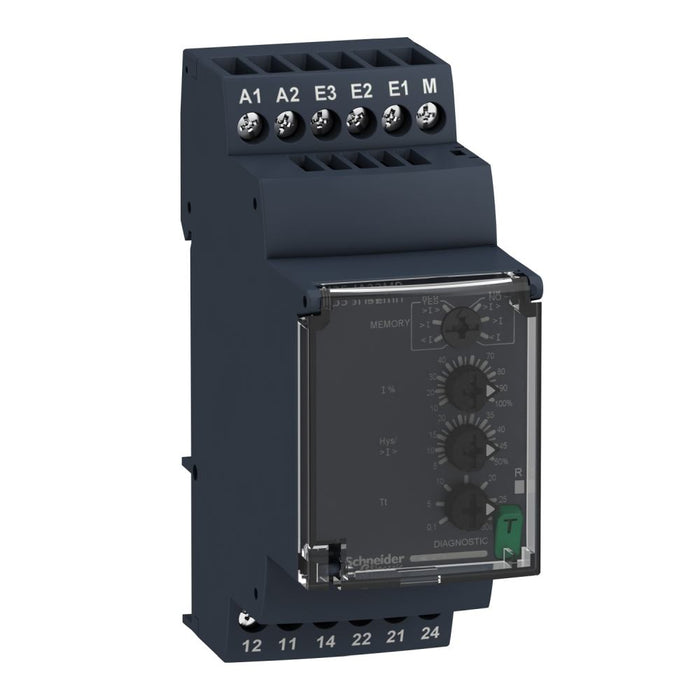

Modular 1ph Current Control Relay 5A 2CO .15-15/24-240VAC/DC
Schneider Electric

Modular 1ph Current Control Relay 5A 2CO .15-15/24-240VAC/DC

Ideal part number SCHRM35JA32MR Manufacturer number RM35JA32MR Barcode 3606480792304
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony Modular 1-phase current control relay 5 A 2 CO 0.15…15 A 24…240 V AC/DC

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

Technical specifications

Width
35 mm
Height
90 mm
Depth
73 mm
Current measuring range
0.15 A
With detachable clamps
no
Single-phase hysteresis possible
yes
Three-phase hysteresis possible
no
Single-phase under current possible
yes
Three-phase under current possible
no
Single-phase overcurrent possible
yes
Three-phase overcurrent possible
no
Contains function DC-voltage under current
yes
Contains function DC-voltage overcurrent
yes
Function DC-current hysteresis
yes
Type of electric connection
Screw connection
Max. permitted off-delay time
30 s
Min. adjustable off-delay time
0.1 s
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
2
Number of contacts as change-over contact
2
