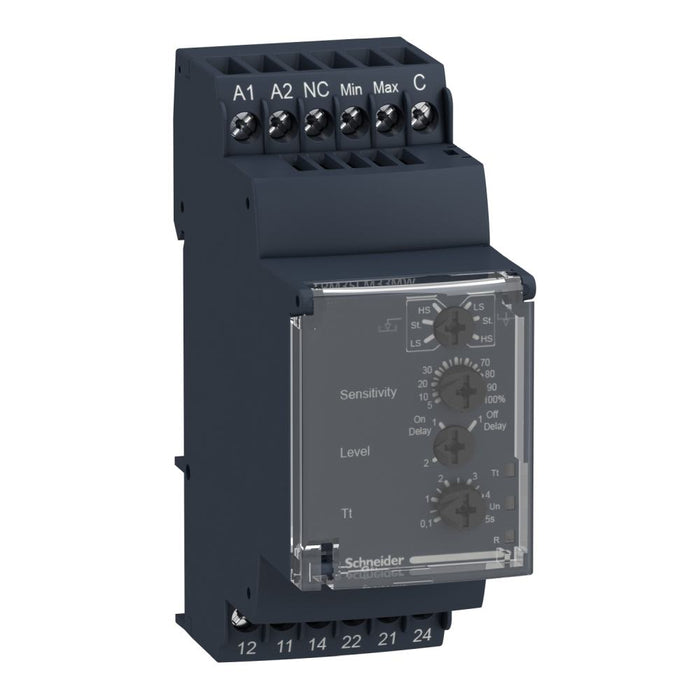

Modular Liquid Level Control Relay 5A 2CO 24-240VAC/DC
Schneider Electric

Modular Liquid Level Control Relay 5A 2CO 24-240VAC/DC

Ideal part number SCHRM35LM33MW Manufacturer number RM35LM33MW Barcode 3389119405232
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony Modular liquid level control relay 5 A 2 CO 24...240 V AC/DC

This Harmony RM35-LM relay allows monitoring of level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

Technical specifications

Width
35 mm
Height
90 mm
Depth
72 mm
With detachable clamps
no
Number of inputs for electrodes
3
Response value sensitivity adjustable
yes
Type of electric connection
Screw connection
Max. permitted off-delay time
5 s
Min. adjustable off-delay time
0.1 s
Max. permitted operate delay time
5 s
Min. adjustable operate delay time
0.1 s
Physical measurement principle
Conductive
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
