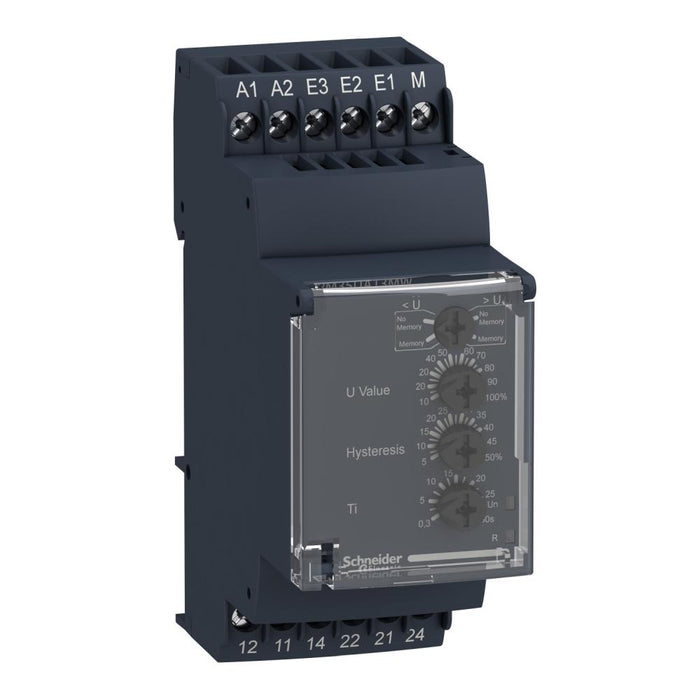

Modular 1ph Voltage Control Relay 5A 2CO 15-600/24-240VAC/DC
Schneider Electric

Modular 1ph Voltage Control Relay 5A 2CO 15-600/24-240VAC/DC

Ideal part number SCHRM35UA13MW Manufacturer number RM35UA13MW Barcode 3389119405317
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony Modular 1-phase voltage control relay 5 A 2 CO range 15..600 V 24..240 V AC/DC

This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

Technical specifications

Width
35 mm
Height
90 mm
Depth
72 mm
With detachable clamps
no
Single-phase under voltage possible
no
Three-phase under voltage possible
yes
Single-phase over voltage possible
no
Three-phase over voltage possible
yes
Single-phase hysteresis possible
no
Three-phase hysteresis possible
no
Contains function DC-under voltage
no
Contains function DC-over voltage
no
Contains function DC-voltage hysteresis
no
Type of voltage measuring range
AC
Type of electric connection
Screw connection
Voltage measuring range 1
15 V
Max. permitted delay-on energization time
30 s
Min. adjustable delay-on energization time
0.3 s
Response value voltage
15 V
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
