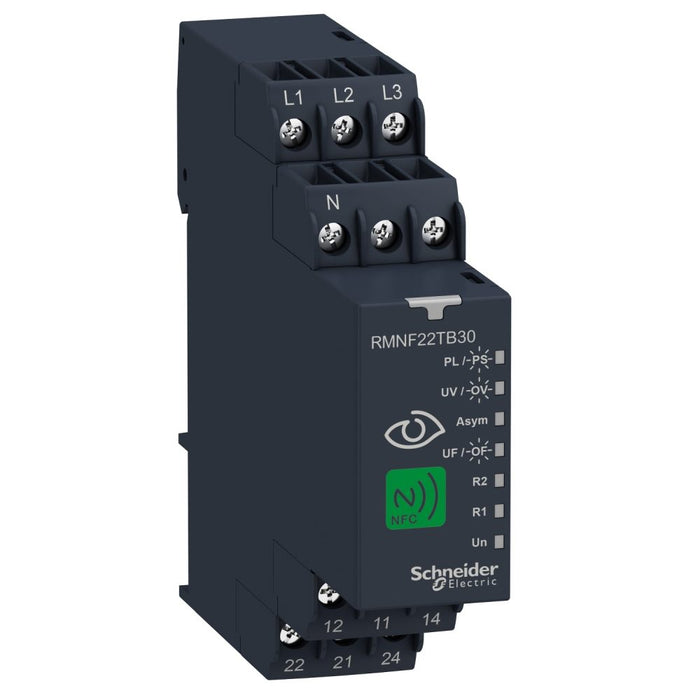

NFC 3ph Monitoring Relay 8A 2CO Multifunction 208-480VAC
Schneider Electric

NFC 3ph Monitoring Relay 8A 2CO Multifunction 208-480VAC

Ideal part number SCHRMNF22TB30 Manufacturer number RMNF22TB30 Barcode 3606489591120
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony NFC 3-phase monitoring relay 8 A 2CO multifunction 208…480 V AC

This 3-phase control relay belongs to the Schneider Electric Harmony Control relays range. This 3-phase control relay is integrated with NFC technology which brings in digital operation instead of analog operation. This is a 8A multifunction 3-phase control relay which monitors 3-phase or 3-phase with Neutral network and has an adjustable time delay of 0.1s to 60min. With Harmony NFC App, different alarms can be combined using AND, OR and NOT logic to form unique monitoring combinations for the two relay outputs which are individually configurable. NFC 3-phase control relay is a single reference supporting 7 functions namely Phase loss, Phase sequence, Asymmetry, Undervoltage, Overvoltage, Under-frequency, and Over-frequency. The 3-phase control relay is IP20 (terminals), IP40 (housing), and IP40(front panel) protected. Furthermore, the 4 digit password enhances security by preventing unauthorized change of settings. This RMNF22 dimensions are 22.5mm (width) x 90mm (height) x 99mm (depth) and weighs 0.125Kg. It conforms to international standard EN/IEC 60255-1 and certifications like UL, CSA, CE, CCC, EAC, and RCM. It is sold as a single unit. Monitoring and testing are now intuitive as exact fault conditions can be identified through front LEDs and analyze data with Harmony NFC App. This saves time and boosts efficiency.

Technical specifications

Width
22.5 mm
Height
90 mm
Depth
99 mm
Voltage measuring range
0 V
With detachable clamps
no
Phase sequence monitoring
yes
Phase failure detection
yes
Function under voltage detection
yes
Function over voltage detection
yes
Phase imbalance monitoring
yes
Type of electric connection
Screw connection
Max. permitted delay-on energization time
300 s
Min. adjustable delay-on energization time
0.1 s
Max. permitted off-delay time
300 s
Min. adjustable off-delay time
0.1 s
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
