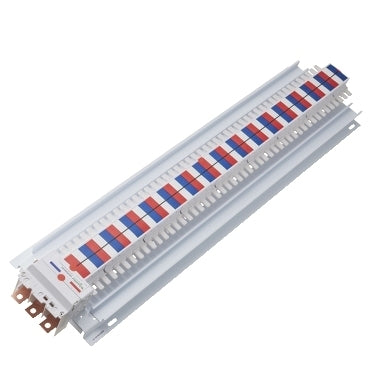

MCB Chassis 96Pole 250A 3Ph 18mm TF

MCB Encapsulated Chassis 96 Pole 250A 3 Phase 18mm TF Suits Acti9 Circuit Breakers iC60 & C120 to 125 Amp

This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 96 with pitch of 18mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 866mm x (W) 215mm.
