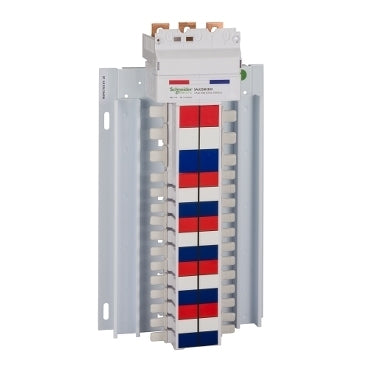

MCB Chassis 30Pole 250A 3Ph Hybrid TF

MCB Encapsulated Chassis 30 Pole 250A 3 Phase Hybrid TF Suits Acti9 Circuit Breakers iC60 & C120 to 125 Amp

This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 24 with pitch of 18mm and with pith of 27mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 299mm x (W) 215mm.
