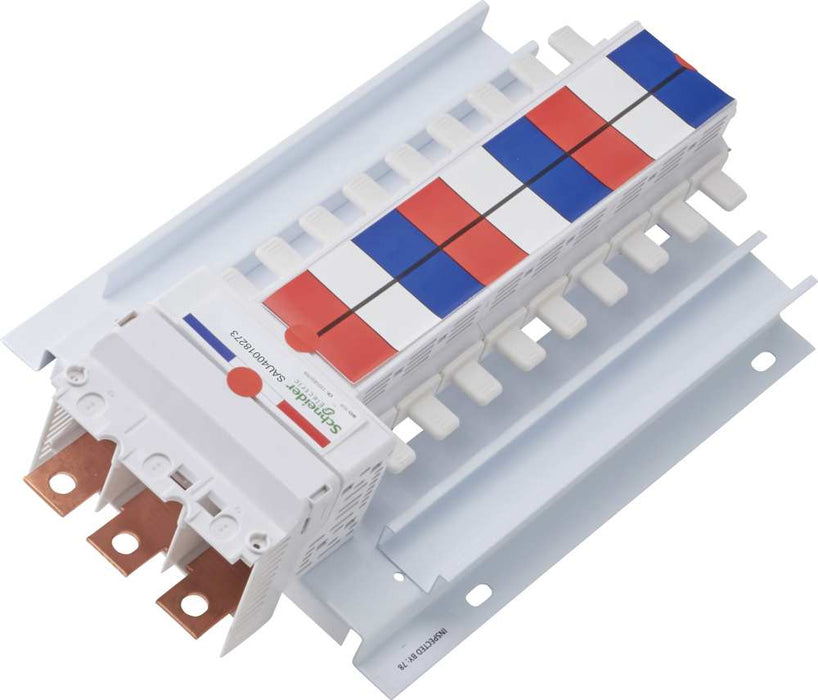

MCB/RCBO Chassis 18Pole 400A 27mm 3Ph Top/Bottom Feed
Schneider Electric

MCB/RCBO Chassis 18Pole 400A 27mm 3Ph Top/Bottom Feed

Ideal part number SCHSAU40018273 Manufacturer number SAU40018273 Barcode 3606482234918
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

MCB/RCBO Chassis 18 pole, 400A, 27mm, 3 phase, Top/Bottom Feed

This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 18 with pitch of 27mm. This chassis has IP2X protection when used with relevant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 437mm x (W) 215mm.

Technical specifications

Width
245 mm
Height
437 mm
Depth
95 mm
With cover
no
Number of poles
18
Short-circuit breaking capacity
25 kA (Icw: 25)
Max. rated current
400 A
Busbar position
Centre central
