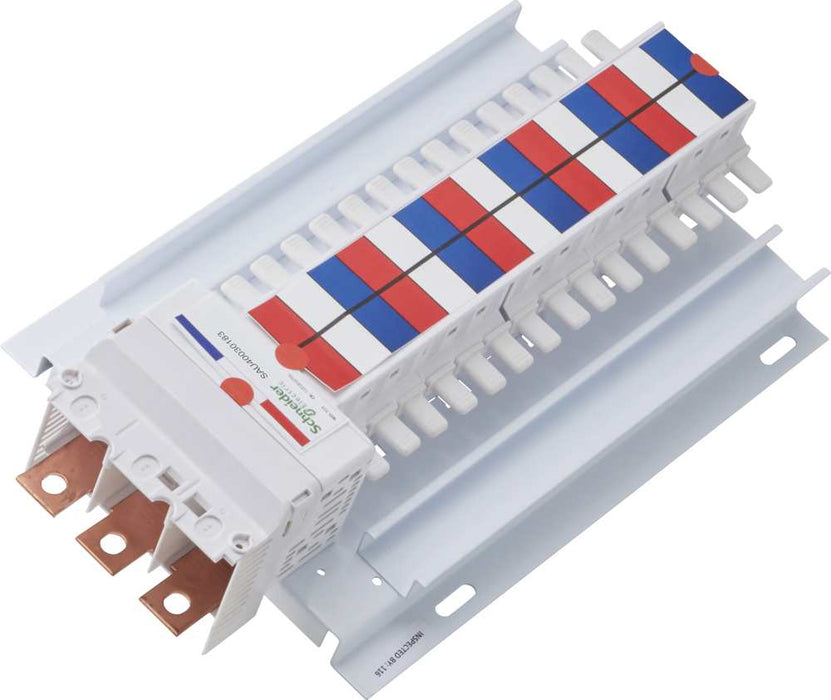

MCB/RCBO Chassis 30Pole 400A 18mm 3Ph Top/Bottom Feed
Ideal Part Number SCHSAU40030183
Manufacturer Number SAU40030183
Barcode 3606482234697
Product Details
MCB/RCBO Chassis 30 pole, 400A, 18mm, 3 phase, Top/Bottom Feed
This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatible with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 30 with pitch of 18mm. This chassis has IP2X protection when used with relevant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 464mm x (W) 215mm.
This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatible with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 30 with pitch of 18mm. This chassis has IP2X protection when used with relevant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 464mm x (W) 215mm.
