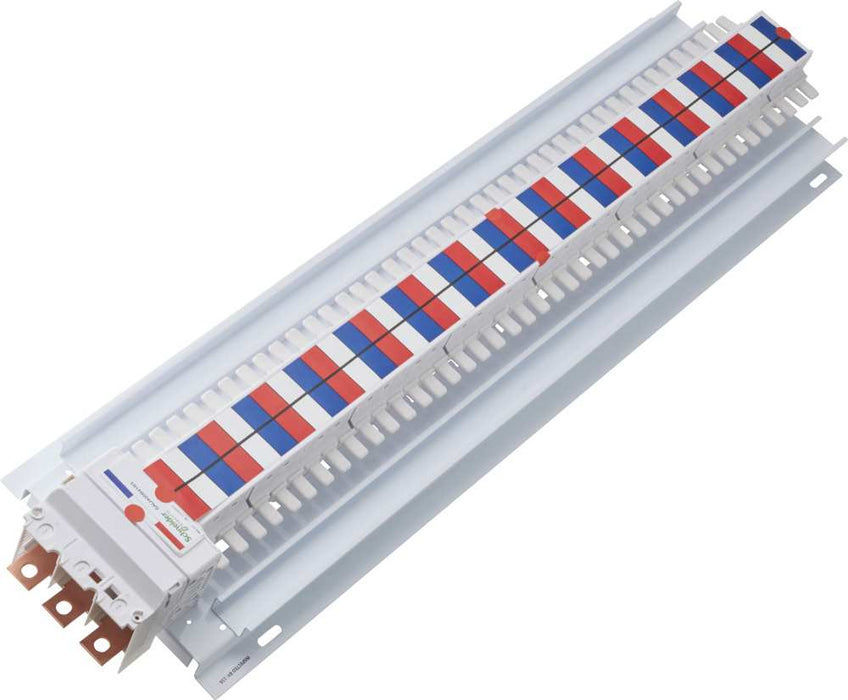

MCB/RCBO Chassis 84Pole 400A 18mm 3Ph Top/Bottom Feed
Schneider Electric

MCB/RCBO Chassis 84Pole 400A 18mm 3Ph Top/Bottom Feed

Ideal part number SCHSAU40084183 Manufacturer number SAU40084183 Barcode 3606482234758
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

MCB/RCBO Chassis 84 pole, 400A, 18mm, 3 phase, Top/Bottom Feed

This Acti9 SAU Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatible with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 84 with pitch of 18mm. This chassis has IP2X protection when used with relevant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard.

Technical specifications

Width
245 mm
Height
950 mm
Depth
95 mm
