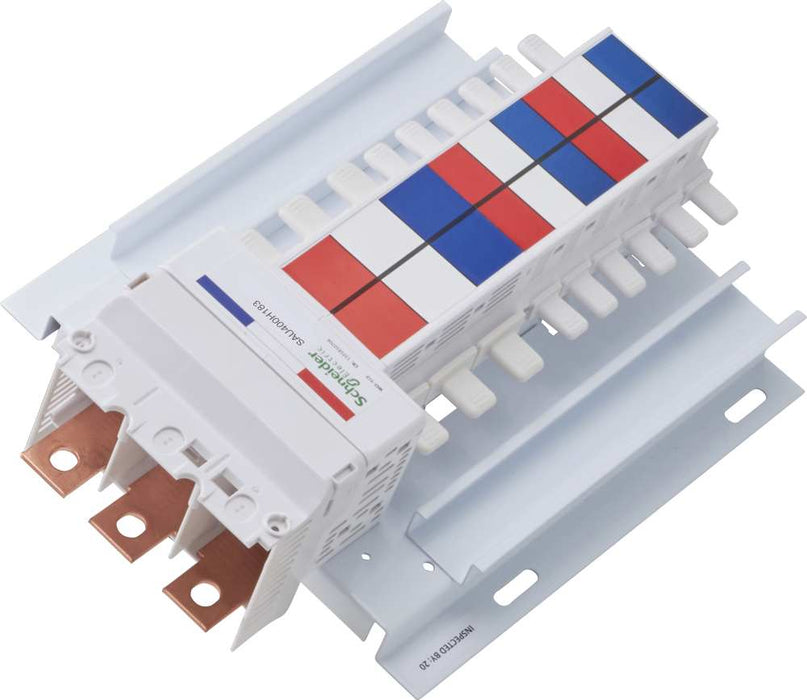

MCB/RCBO Chassis 18Pole 400A 18/27mm 3Ph Top/Bottom Feed
Product Details
MCB/RCBO Chassis 18 pole, 400A, 18/27mm, 3 phase, Top/Bottom Feed
This Acti9 SAU hybrid Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 18 with pitch of 18mm and with pith of 27mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 383mm x (W) 215mm.
This Acti9 SAU hybrid Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 18 with pitch of 18mm and with pith of 27mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 383mm x (W) 215mm.
