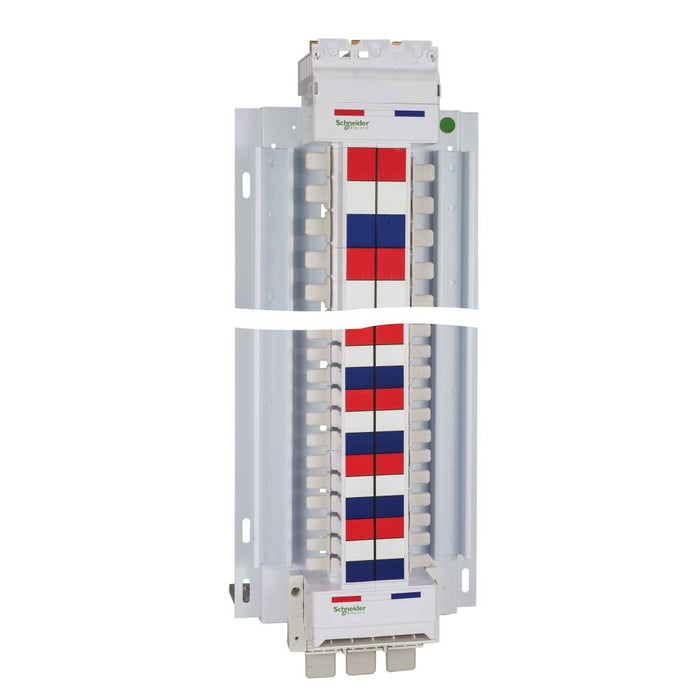

MCB/RCBO Chassis 84Pole 400A 18/27mm 3Ph Dual Feed
Schneider Electric

MCB/RCBO Chassis 84Pole 400A 18/27mm 3Ph Dual Feed

Ideal part number SCHSAU400H843DF Manufacturer number SAU400H843DF Barcode 3606482235281
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

MCB/RCBO Chassis 84 pole, 400A, 18/27mm, 3 phase, Dual Feed

This Acti9 SAU hybrid Chassis product can be mounted on Distribution boards The Ie rated operational current 250A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and outgoer 1Ph or 3P devices The number of outgoing ways in Chassis is 84 with pitch of 18mm and with pith of 27mm. This chassis has IP2X protection when used with relavant accessories. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV. This product complies with AS NZS 61439-2 standard. The total dimensions are (L) 1096mm x (W) 245mm.

Technical specifications

Width
245 mm
Height
1096 mm
Depth
95 mm
With cover
no
Number of poles
84
Short-circuit breaking capacity
25 kA (Icw: 25)
Max. rated current
400 A
Busbar position
Centre central
