Transfer Switch 4P 160A Active Automatic LCD Frame 160A
Schneider Electric

Transfer Switch 4P 160A Active Automatic LCD Frame 160A

Ideal part number SCHTA16D4L1604T Manufacturer number TA16D4L1604TPE Barcode 3606481065865
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

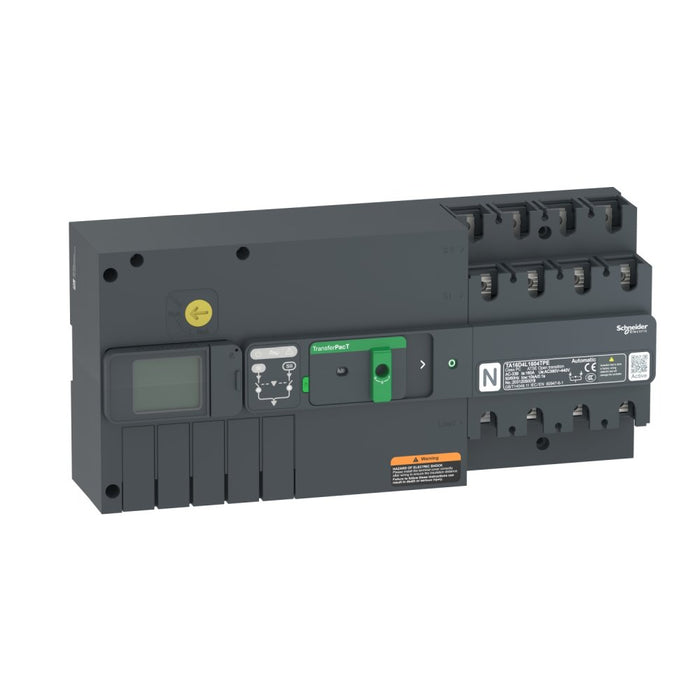

Transfer Switch 4P 160A Active Automatic LCD Frame 160A

This TA16D4L1604TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 160A(Ie) at 60℃, with 80-160A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 351mm(width)x164mm(height)x95mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.

Technical specifications

Model
Other
Rated permanent current Iu
160 A
Number of poles
4
With zero
yes (Off position: yes)
With retraction in 0-position
no
Degree of protection
IP20 (Ip, front side: IP20)
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Suitable for floor mounting
no
Suitable for front mounting
no
Suitable for distribution board installation
yes
Complete device in housing
yes
