Function Module Load Shed & Availibility Warning Output Sig
Schneider Electric

Function Module Load Shed & Availibility Warning Output Sig

Ideal part number SCHTPCDIO05 Manufacturer number TPCDIO05 Barcode 3606481065971
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

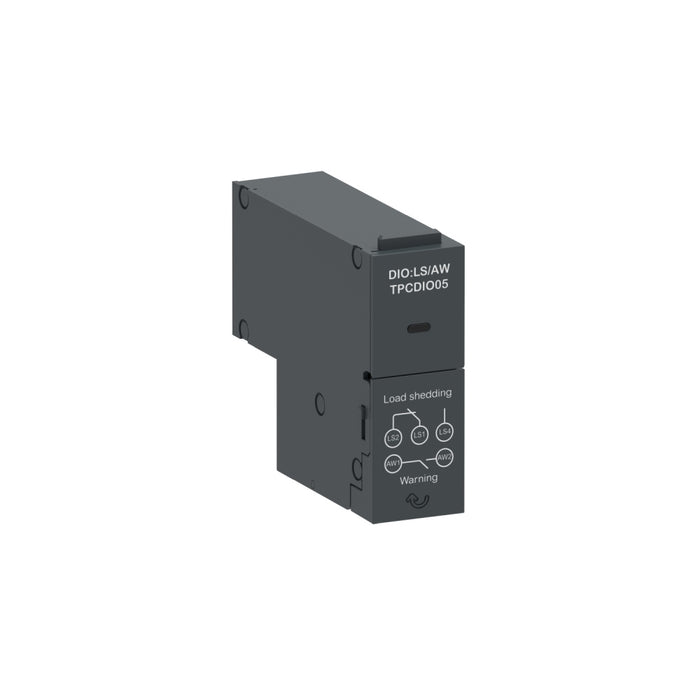

Function Module Load Shed & Availibility Warning Output Signal

TPCDIO05 is output module as signalling accessory. This functional module is auxiliary contact for load shedding and status output. The rated operational current(Ie) is 5A @250VAC/30VDC. The load shedding signal can shed some non-critical loads when ATSE is on Alternate source. A “status” dry contact will activate the signal when transfer switch is not in auto or power is lost on two sources. The signal shall disappear when transfer switch returns to Auto or power is available.

Technical specifications

Mounting method
Other
Model
Top mounting
Type of electric connection
Cable connection, cable not included
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
2
Number of contacts as change-over contact
3
