Function Module Genset Start & Alarm Output Signal
Schneider Electric

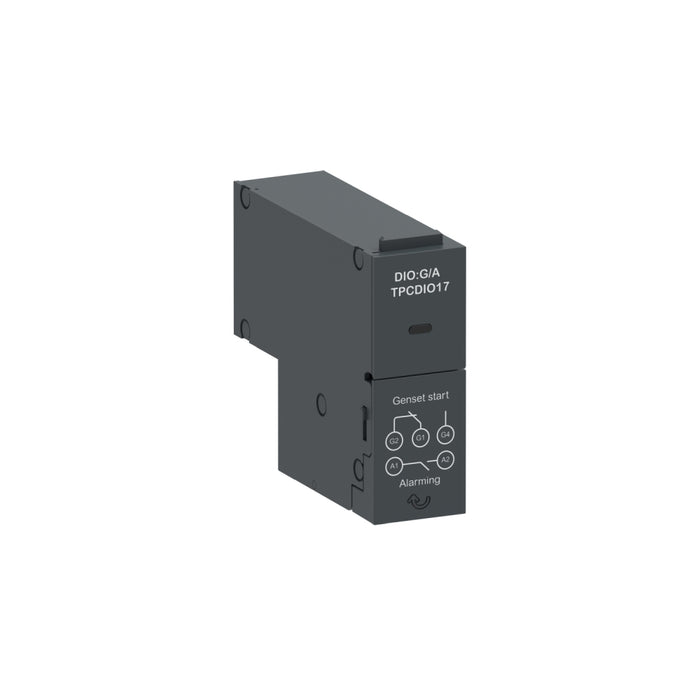

Function Module Genset Start & Alarm Output Signal

Ideal part number SCHTPCDIO17 Manufacturer number TPCDIO17 Barcode 3606481066077
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Function Module Genset Start & Alarm Output Signal

TPCDIO17 is output module as signalling accessory. This functional module is auxiliary contact for Gen start and alarm signal. The rated operational current(Ie) is 5A @250VAC/30VDC. The start signal prevent dry cranking of the engine by requiring the generator set to reach proper output. It can be run for the duration of the cool down setting, when the normal source restores and load is retransferred to normal. The alarm signal output inform user in case of a critical alarm including phase rotation/transfer failures/Micro-switch all closed/ internal error happened. The capacitor is for time delay engine start that will run before genset start no matter with or without external 24VDC.

Technical specifications

Mounting method
Other
Model
Top mounting
Type of electric connection
Cable connection, cable not included
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
2
Number of contacts as change-over contact
3
