Control Station M20 3 x 22mm Cutouts 80 x 130 x 51.5 Grey
Schneider Electric

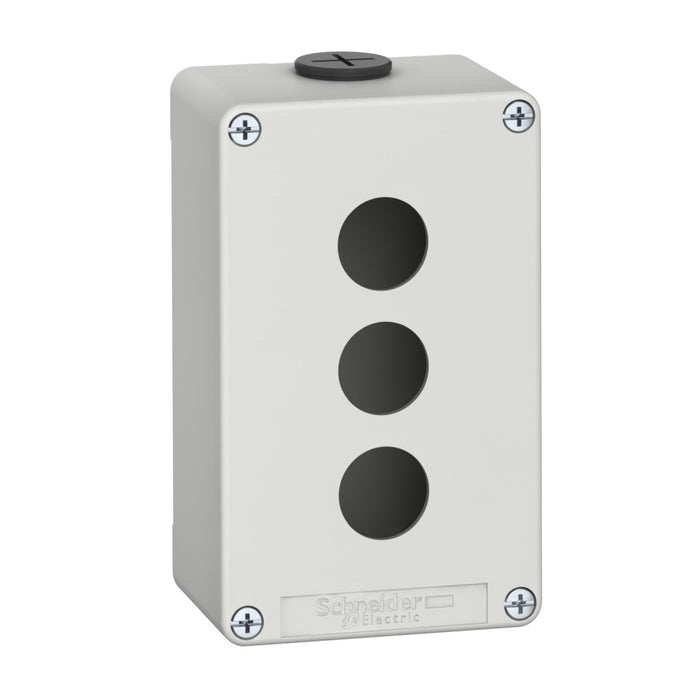

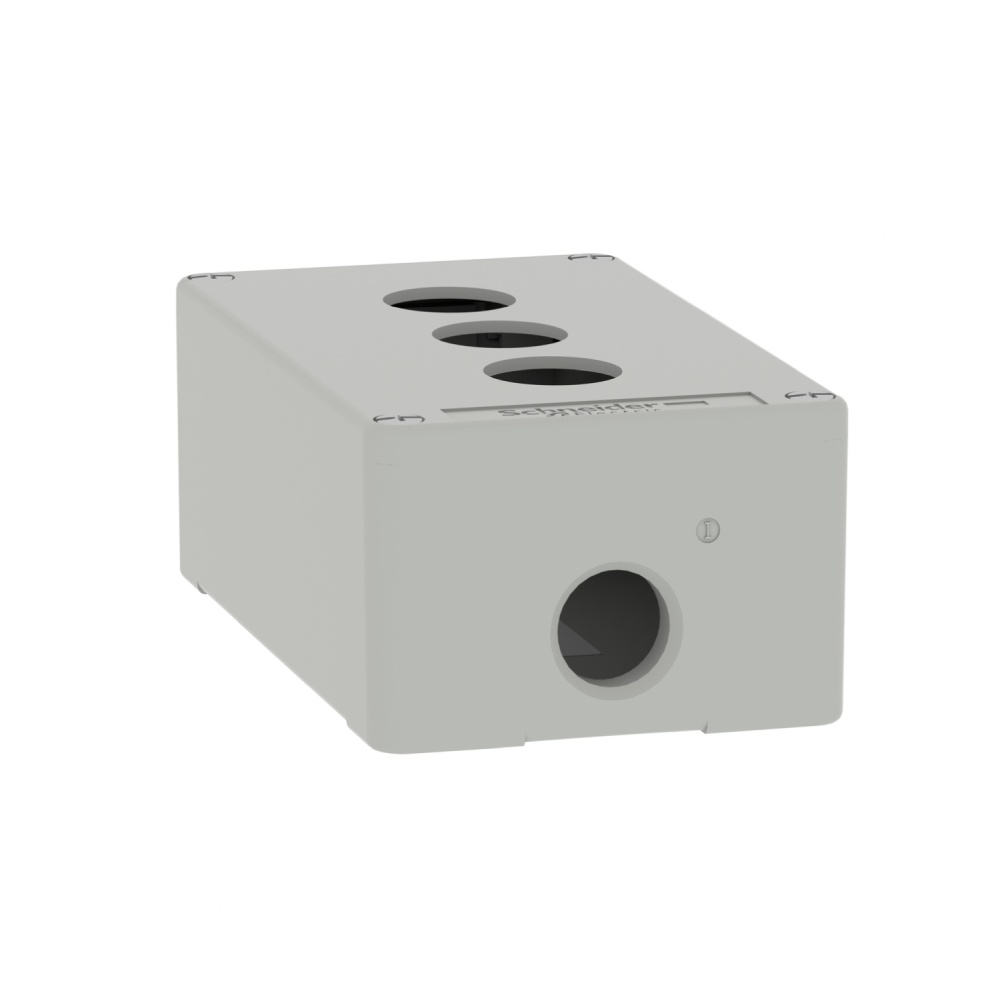

Control Station M20 3 x 22mm Cutouts 80 x 130 x 51.5 Grey

Ideal part number SCHXAPD2203 Manufacturer number XAPD2203 Barcode 3389110001075
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

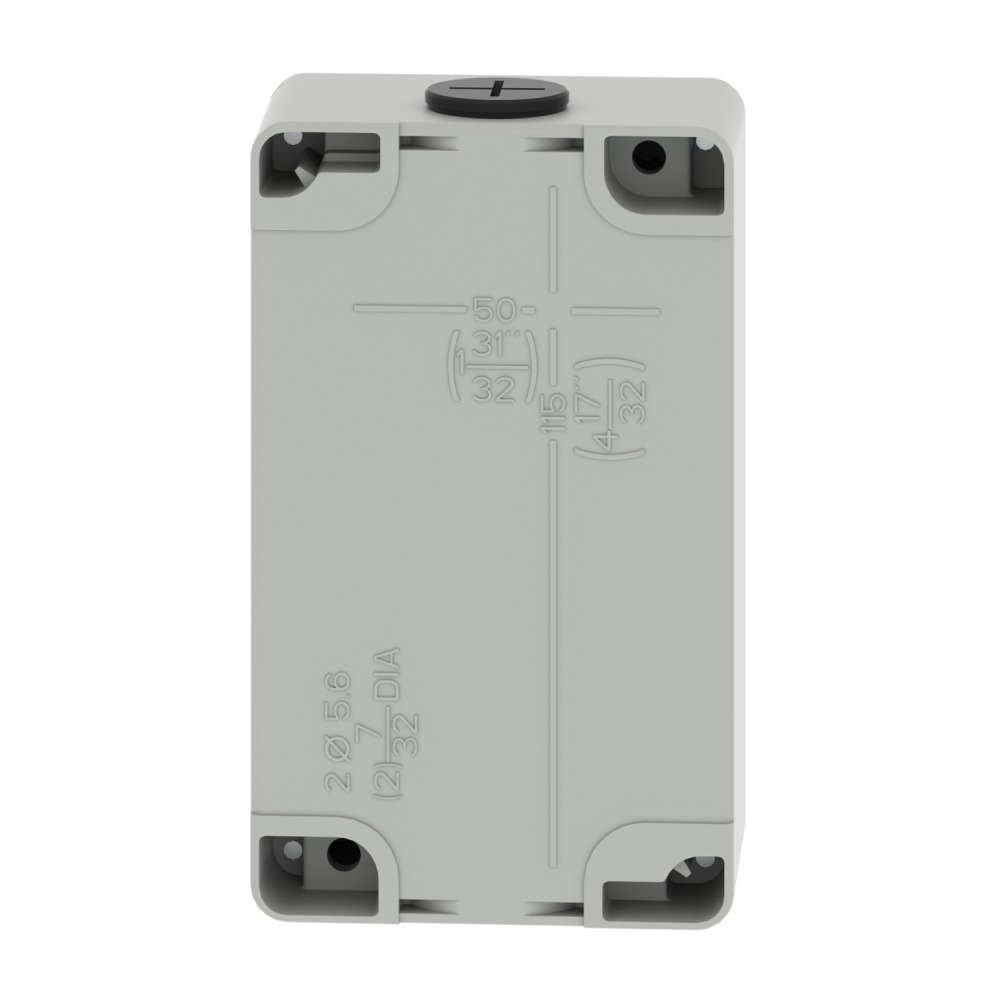

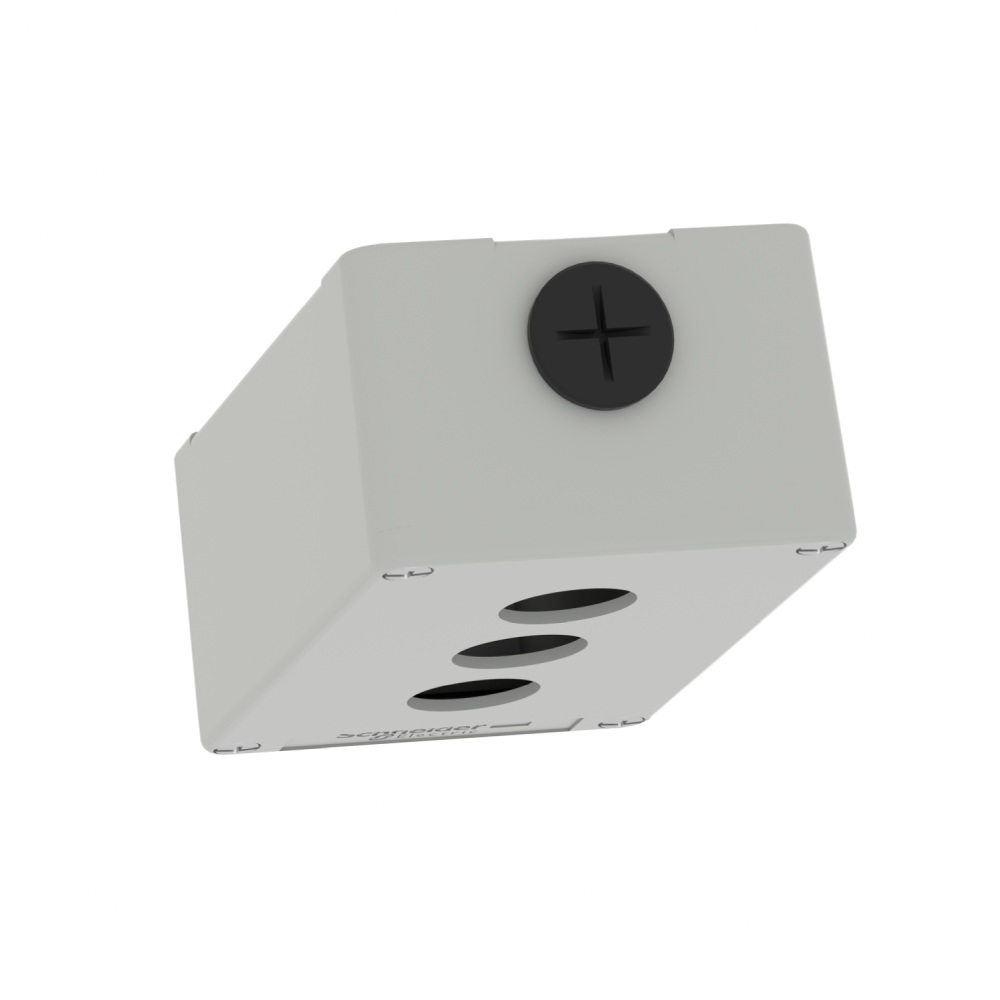

Product details

Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 3 cut-outs 22mm, 80mm x 130mm x 51.5mm, UL cULus

This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD2203 is an empty enclosure with grey color (RAL7035). This version with 3 holes hole position allows combination of XB4/XB5 functions in a small volume. The size remains compact. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 130mm (height) x 51.5mm (depth) and it weighs 0.605kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines It is eco-friendly and complies with directives such as RoHS, WEEE and REACh relating to environmental protection.

Technical specifications

Width
80 mm
Height
130 mm
Depth
51.5 mm
Diameter openings
22 mm
Number of command positions
3
Colour housing cover
Grey
Housing material
Zinc Alloy
Construction type housing
Die-cast
