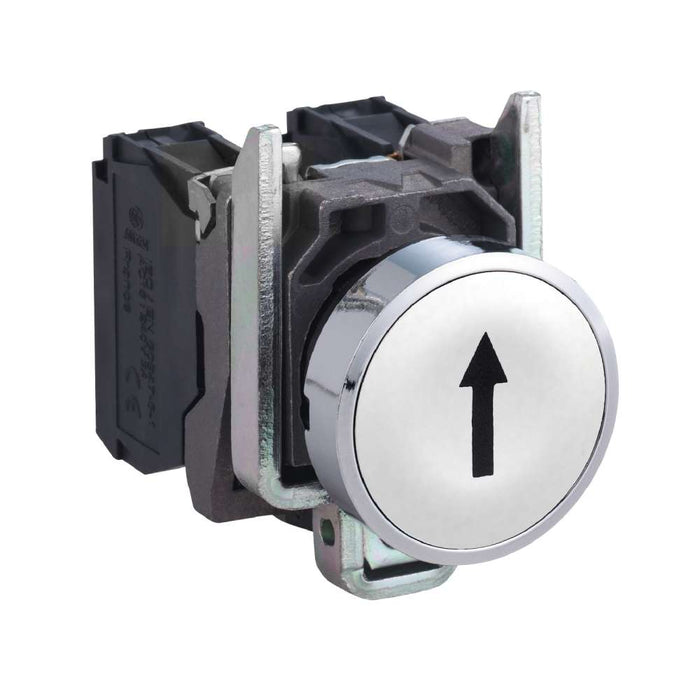

XB4 Pbutton Flush Spring Return 22mm White Up Arrow 1NO
Schneider Electric

XB4 Pbutton Flush Spring Return 22mm White Up Arrow 1NO

Ideal part number SCHXB4BA3341 Manufacturer number XB4BA3341 Barcode 3389110118797
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

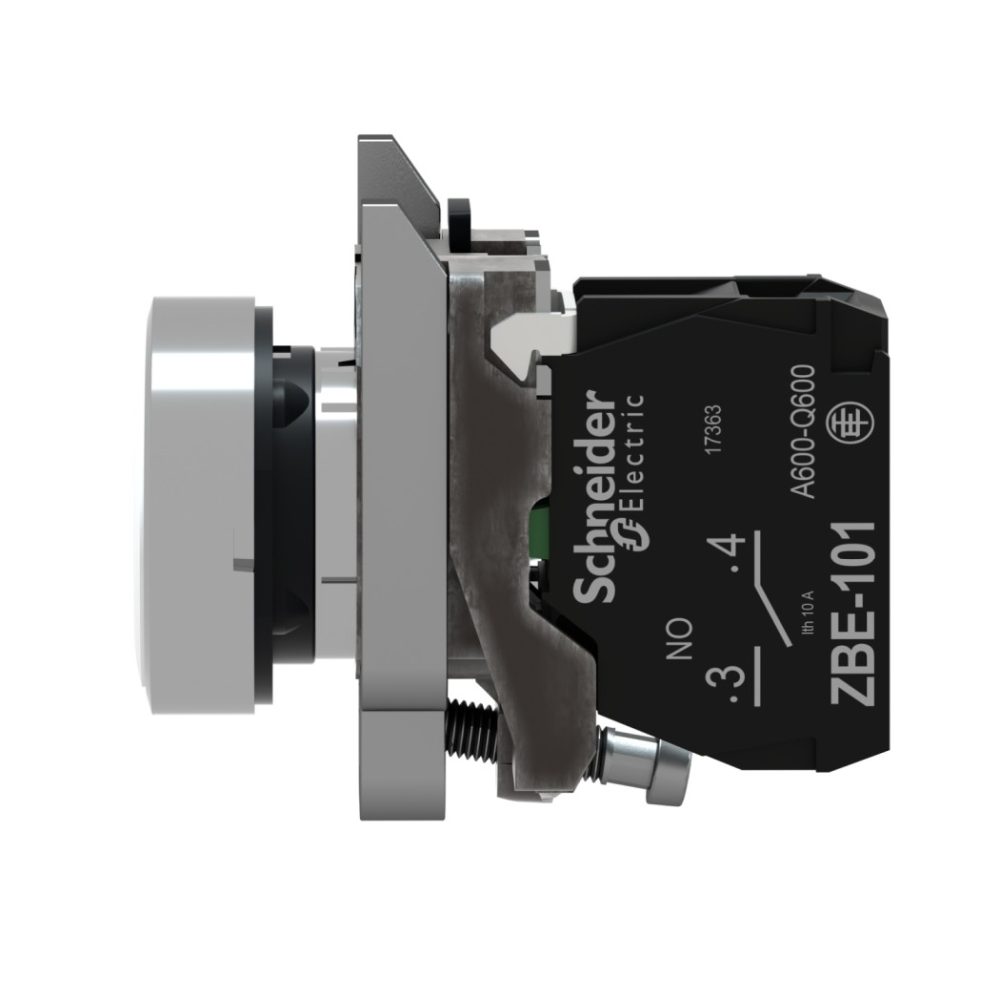

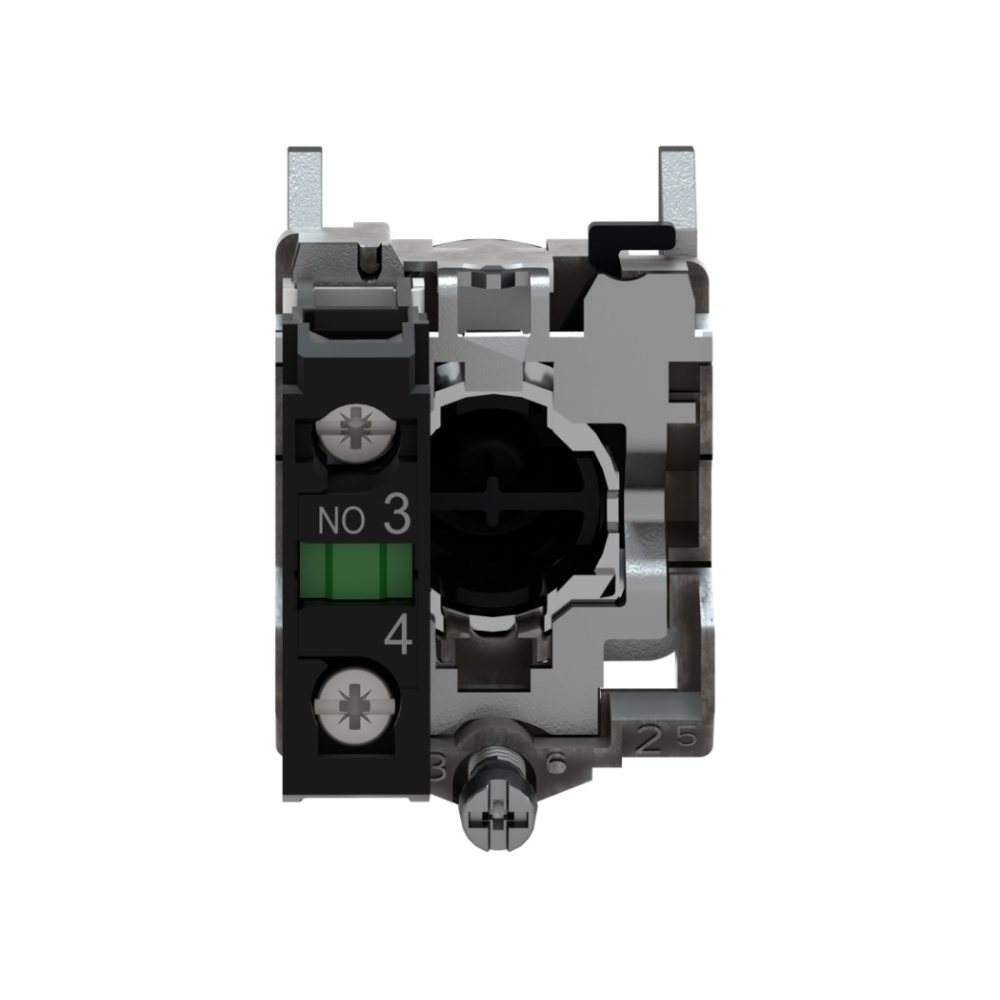

Harmony XB4 Push button metal flush white Ø22 spring return marked UP ARROW 1 NO

This Harmony XB4 modular white push button operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with a Up arrow symbol. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colours and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
White
Suitable for illumination
no
Number of command positions
1
Spring-return
yes
Type of button
Flat
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
IP66 (Ip: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
