XB4 Pbutton 22mm Left Arrow STOP Right Arrow 1NO 1NC 1NO
Schneider Electric

XB4 Pbutton 22mm Left Arrow STOP Right Arrow 1NO 1NC 1NO

Ideal part number SCHXB4BA711237 Manufacturer number XB4BA711237 Barcode 3389119603515
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

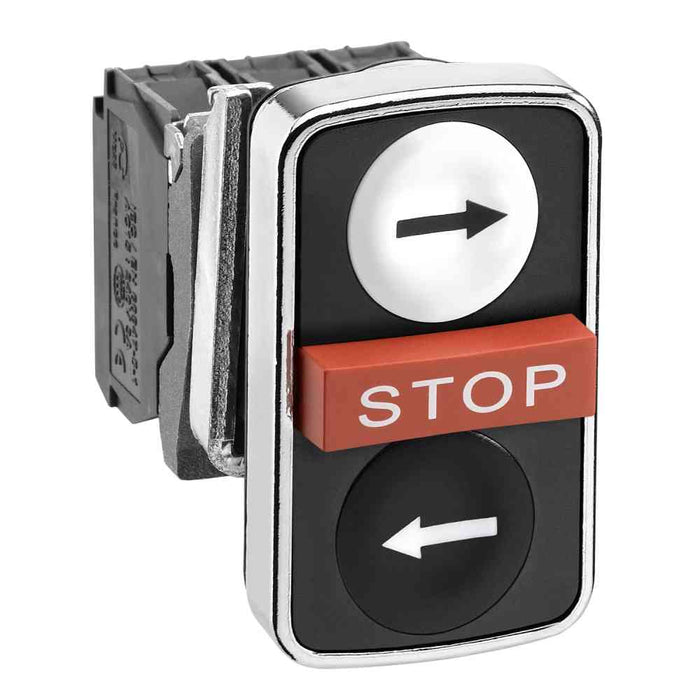

Triple headed push button Harmony XB4 white flush/red projecting/black flush pushbutton Ø22 mm 1NO+1NC+1 NO

This Harmony XB4 triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates witha spring return / impulse mechanism. It has a metal bezel. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colours and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Other
Suitable for illumination
no
Number of command positions
3
Spring-return
yes
Type of button
High
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
Other (Ip: Other)
Material front ring
Metal
With front ring
yes
Construction type lens
Rectangular
Switching function latching
no
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
