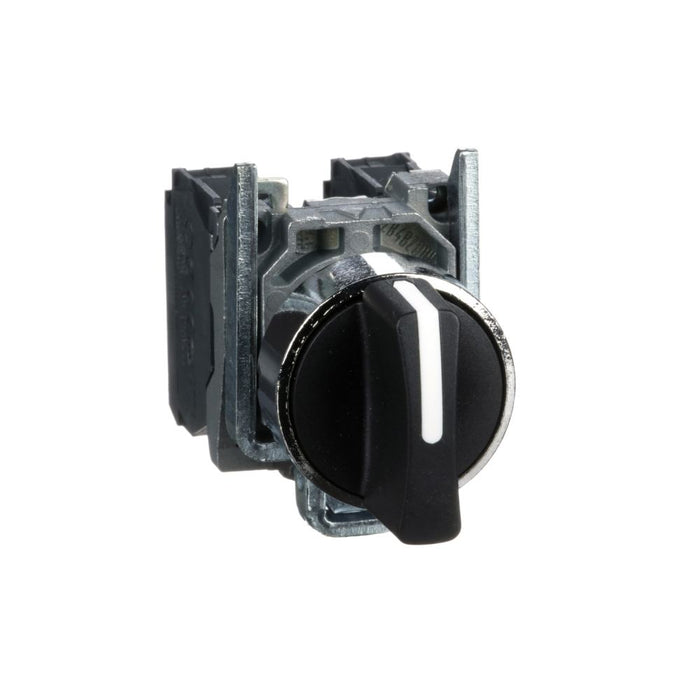

XB4 Selector Switch 22mm 3pos Metal Black Spring Return 2NO
Schneider Electric

XB4 Selector Switch 22mm 3pos Metal Black Spring Return 2NO

Ideal part number SCHXB4BD53 Manufacturer number XB4BD53 Barcode 3389110887112
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Selector switch metal black Ø22 3 positions spring spring return 2 NO

This Harmony XB4 modular black selector switch has 3 positions, operates with a spring-return-to-center mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Black
Number of switch positions
3
Suitable for illumination
no
Spring-return
yes
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
IP67 (Ip: IP67)
With light source
no
Material front ring
Metal
With front ring
yes
Type of control element
Short thumb-grip
Switching function latching
yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
