XB4 Key Selector Sw 22mm Metal Bk 2pos Sp Ret Right-Left 1NO
Schneider Electric

XB4 Key Selector Sw 22mm Metal Bk 2pos Sp Ret Right-Left 1NO

Ideal part number SCHXB4BG61 Manufacturer number XB4BG61 Barcode 3389110118971
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

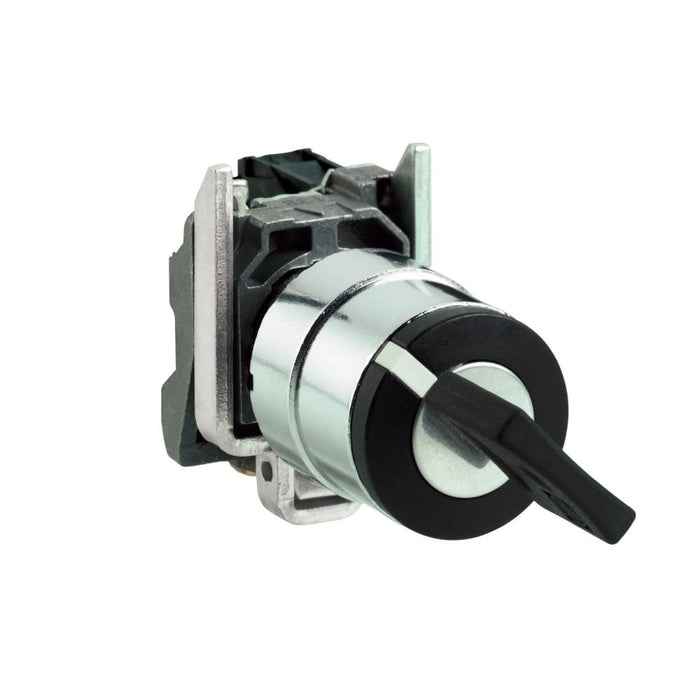

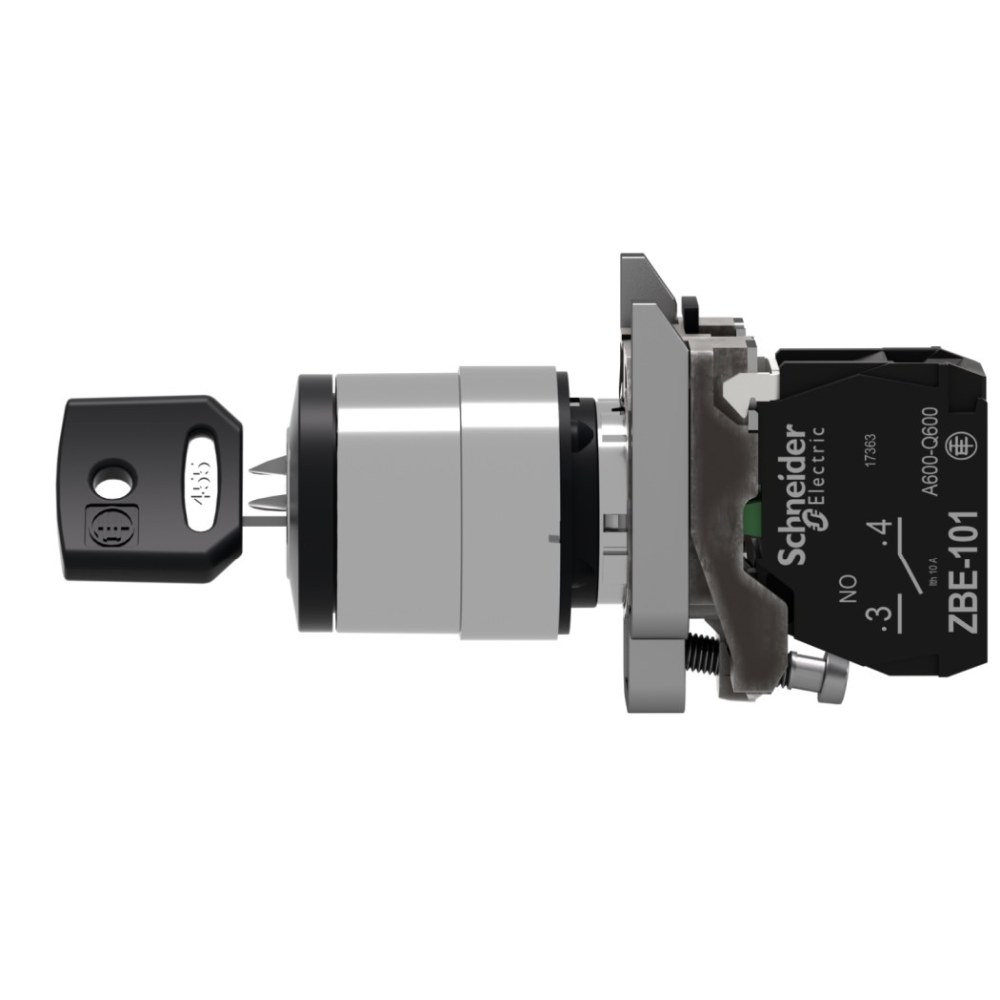

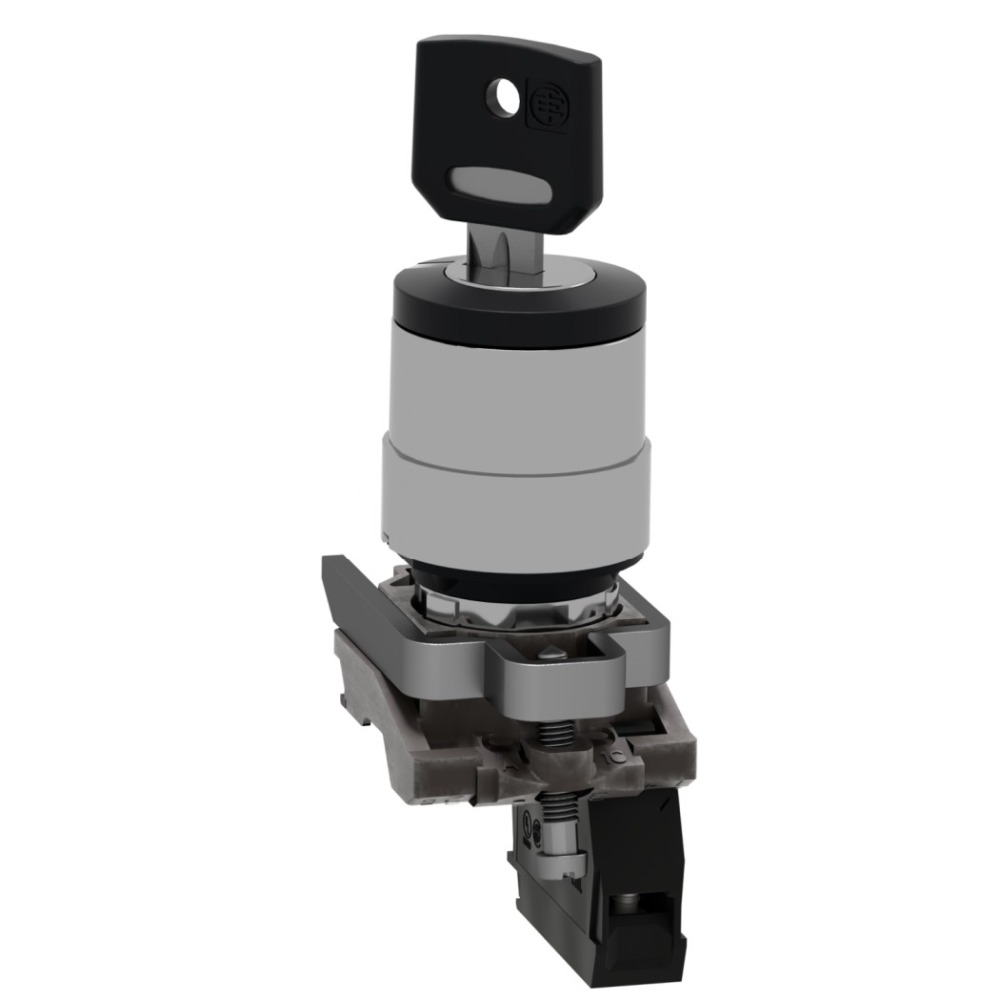

Harmony XB4 Key switch selector metal black Ø22 key n°455 2 positions spring return right to left 1 NO

This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a spring-return-to-left mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Black
Number of switch positions
2
Suitable for illumination
no
Spring-return
no
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
IP66 (Ip: IP66)
With light source
no
Material front ring
Metal
With front ring
yes
Type of control element
Key
Switching function latching
yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
