XB4 Selector Sw 22mm Met Blk 3pos Stay Put Long Handle 2NO
Schneider Electric

XB4 Selector Sw 22mm Met Blk 3pos Stay Put Long Handle 2NO

Ideal part number SCHXB4BJ53 Manufacturer number XB4BJ53 Barcode 3389110887129
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

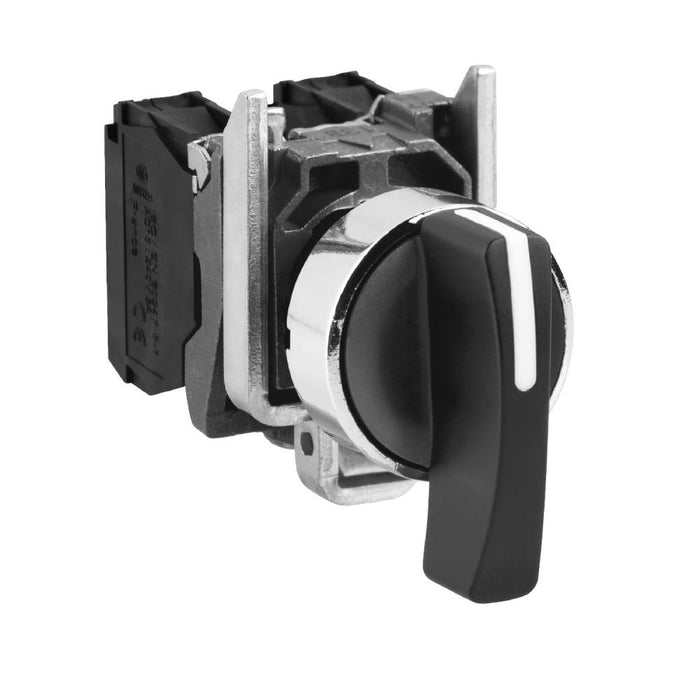

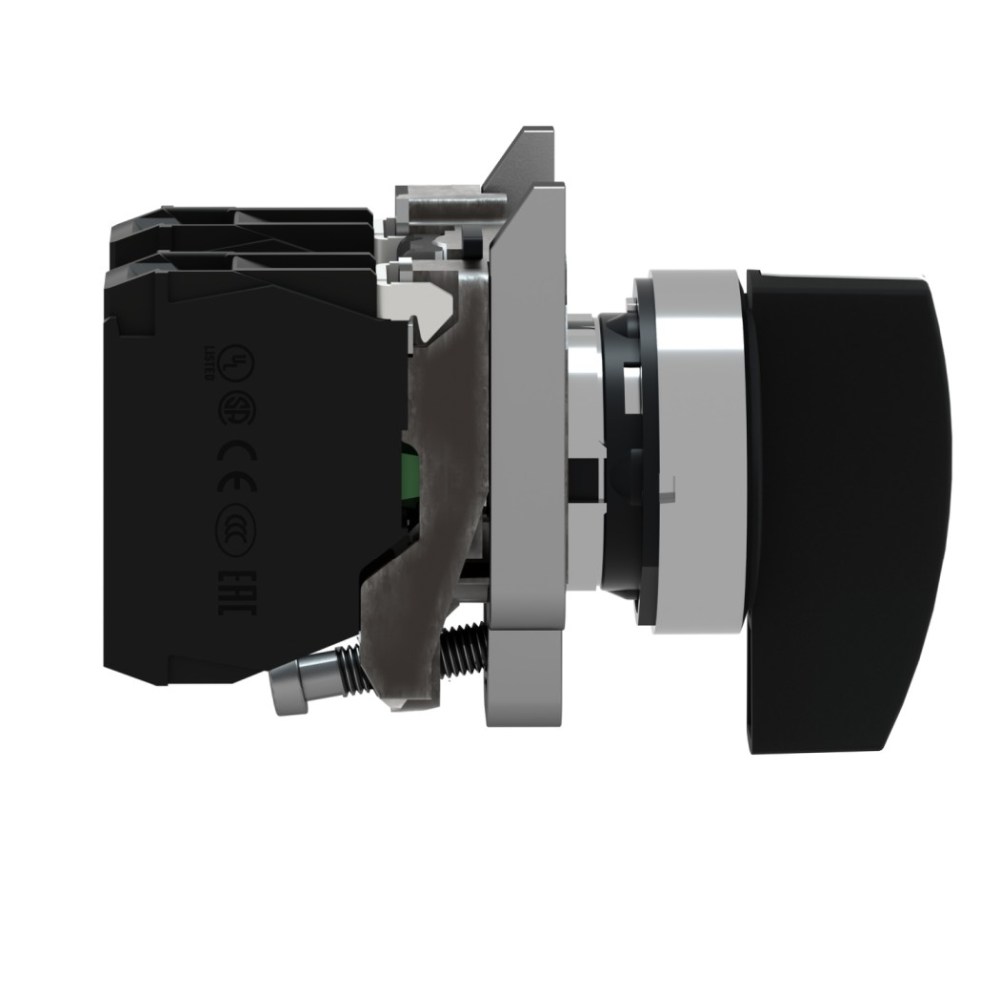

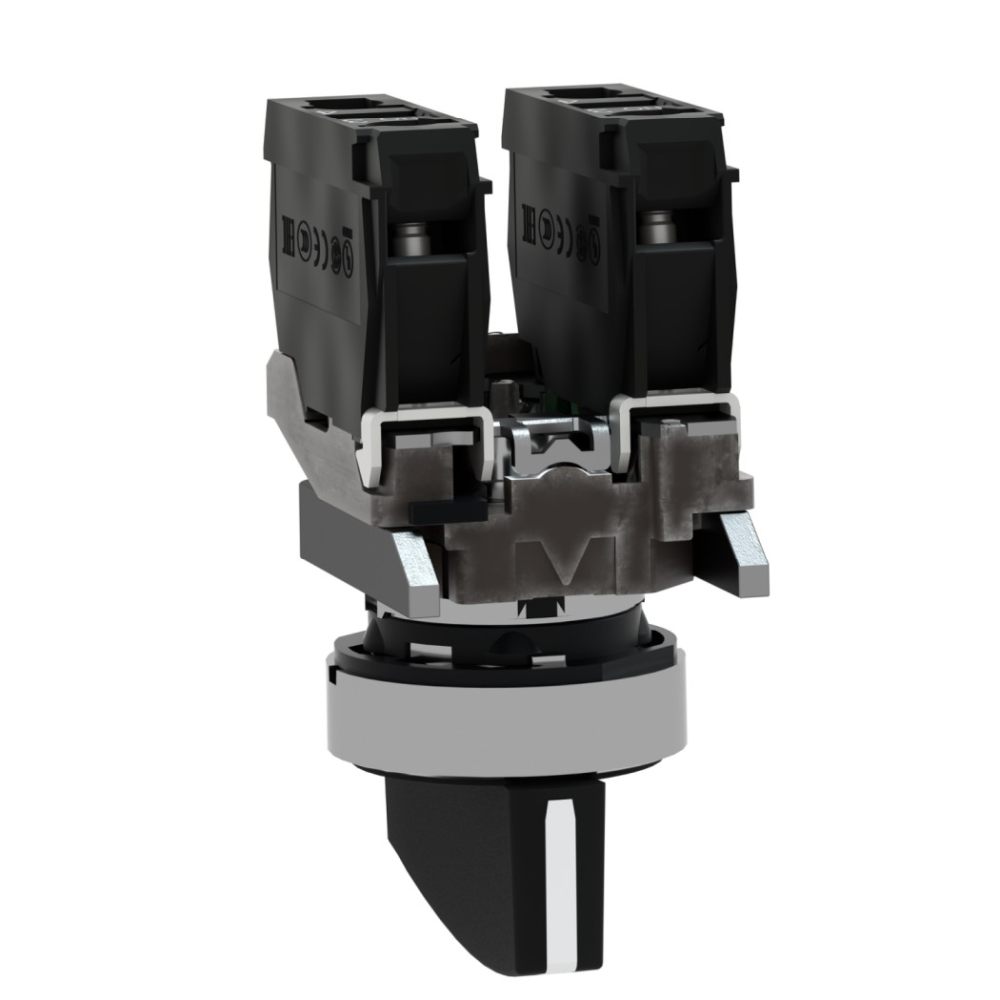

Harmony XB4 Selector switch metal black Ø22 long handle 3 position stay put 2 NO

This Harmony XB4 long handle modular black selector switch has 3 positions, operates with a spring-return-to-center mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Black
Number of switch positions
3
Suitable for illumination
no
Spring-return
yes
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
IP67 (Ip: IP67)
With light source
no
Material front ring
Metal
With front ring
yes
Type of control element
Long turning handle
Switching function latching
yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
