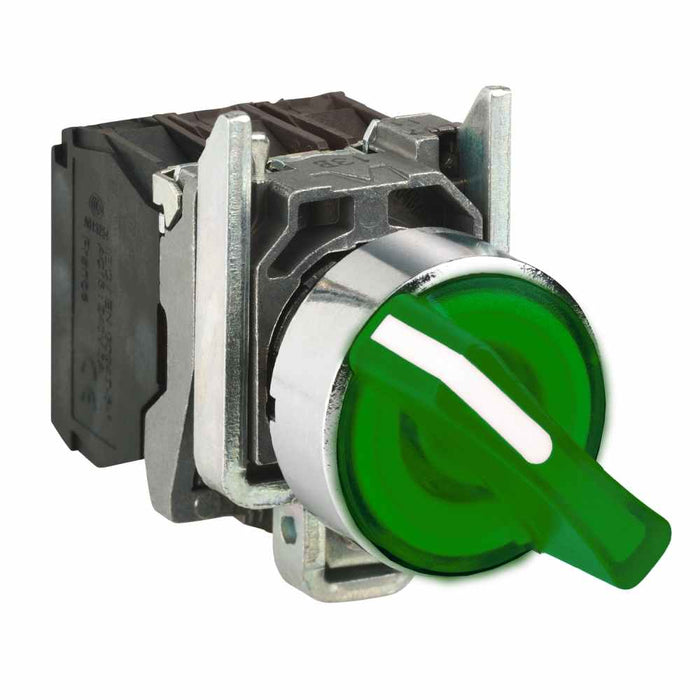

XB4 Select Sw 22mm Illum Met Green 2pos Stay Put 24V 1NO/1NC
Schneider Electric

XB4 Select Sw 22mm Illum Met Green 2pos Stay Put 24V 1NO/1NC

Ideal part number SCHXB4BK123B5 Manufacturer number XB4BK123B5 Barcode 3389110892192
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

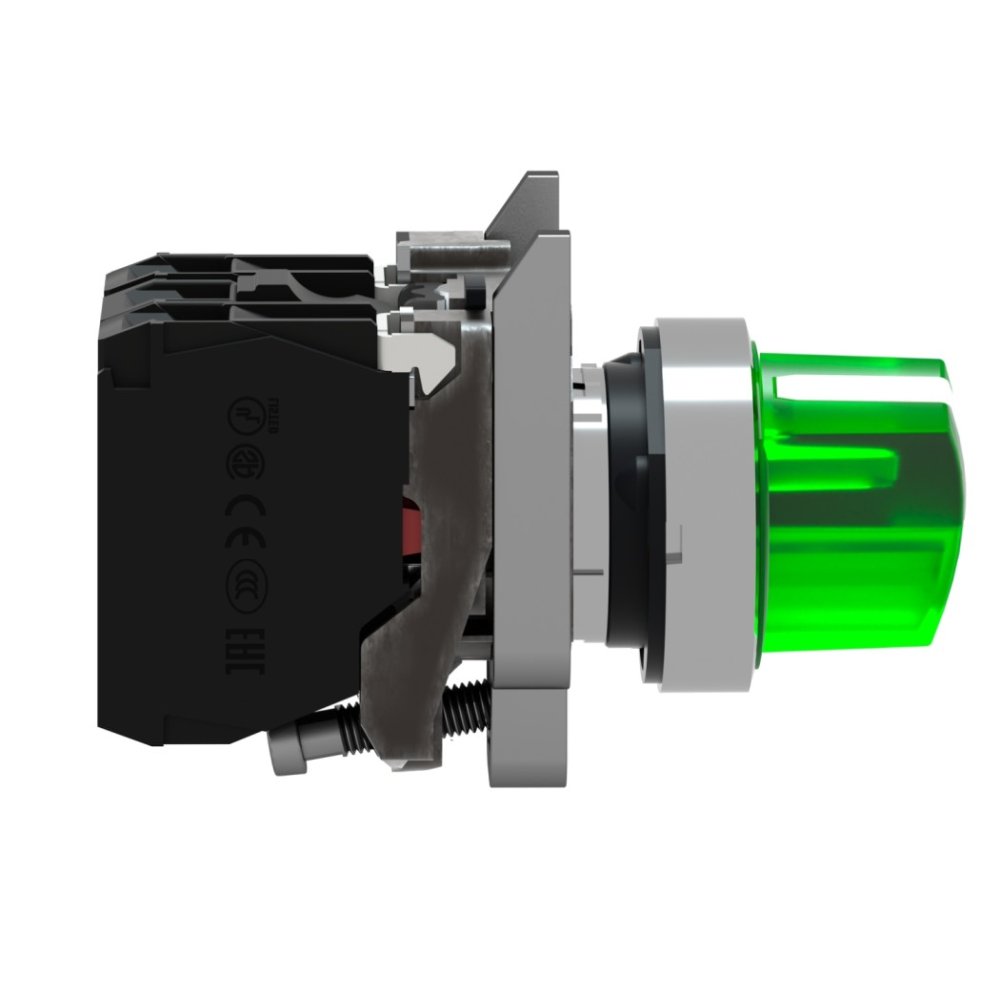

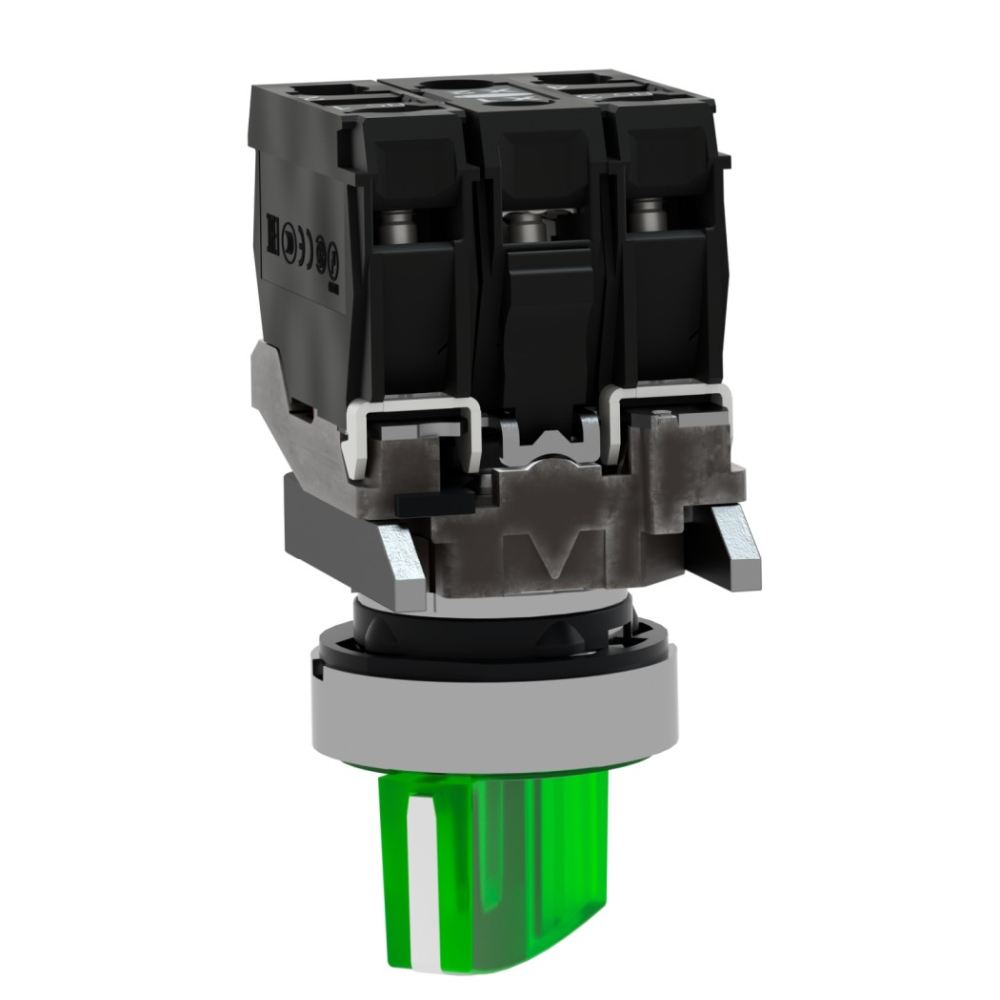

Harmony XB4 Illuminated selector switch metal green Ø22 2 positions stay put 24 V AC/DC 1 NO + 1 NC

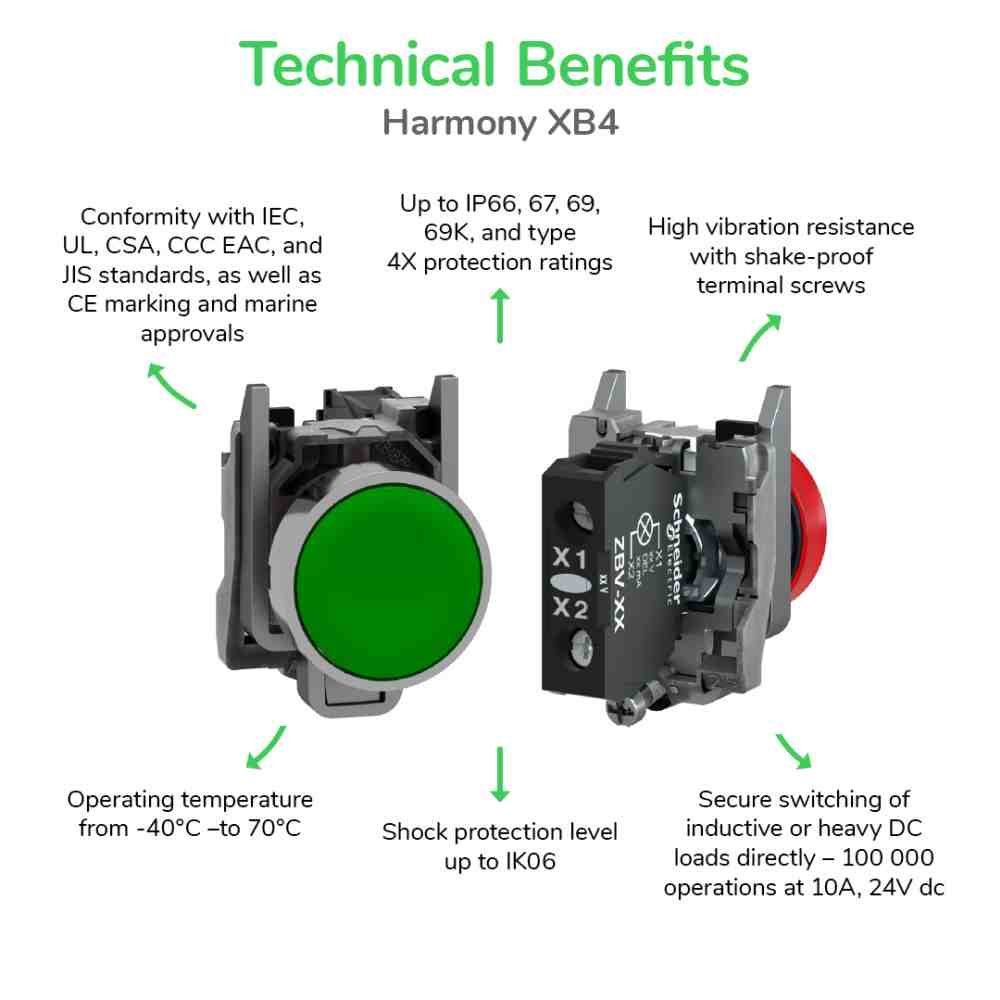

This Harmony XB4 illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC integral LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Green
Number of switch positions
2
Suitable for illumination
yes
Spring-return
no
Colour front ring
Chrome
Type of electric connection
Screw connection
Supply voltage
24 V
Degree of protection
IP66 (Ip: IP66)
With light source
yes
Material front ring
Metal
With front ring
yes
Type of control element
Short thumb-grip
Switching function latching
yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
