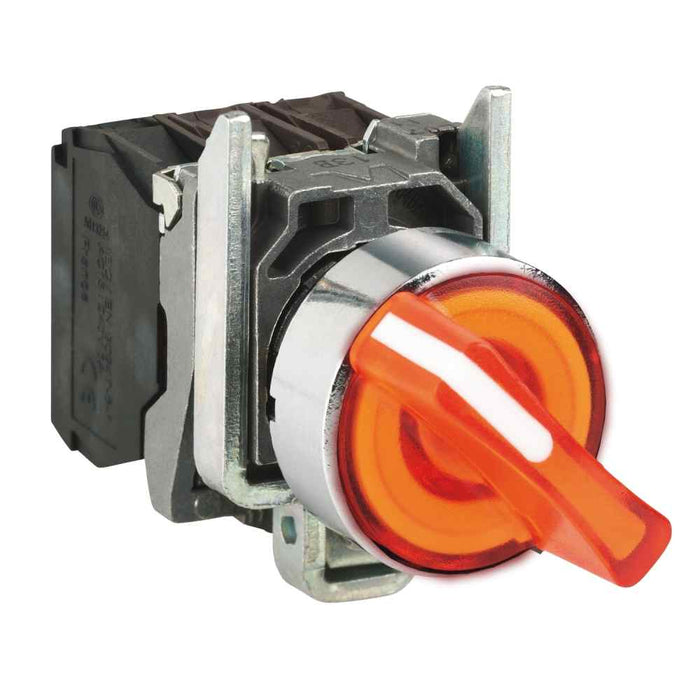

XB4 Select Sw 22mm Illum Met Orange 2p Stay Put 240V 1NO1NC
Schneider Electric

XB4 Select Sw 22mm Illum Met Orange 2p Stay Put 240V 1NO1NC

Ideal part number SCHXB4BK125M5 Manufacturer number XB4BK125M5 Barcode 3389110892277
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Illuminated selector switch metal orange Ø22 2 positions stay put 230...240 V AC 1 NO + 1 NC

This Harmony XB4 illuminated modular orange selector switch has 2 positions, operates with a stay-put mechanism, a 230V to 240V AC integral LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Orange
Number of switch positions
2
Suitable for illumination
yes
Spring-return
no
Colour front ring
Chrome
Type of electric connection
Screw connection
Supply voltage
230 V
Degree of protection
IP66 (Ip: IP66)
With light source
yes
Material front ring
Metal
With front ring
yes
Type of control element
Short thumb-grip
Switching function latching
yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
