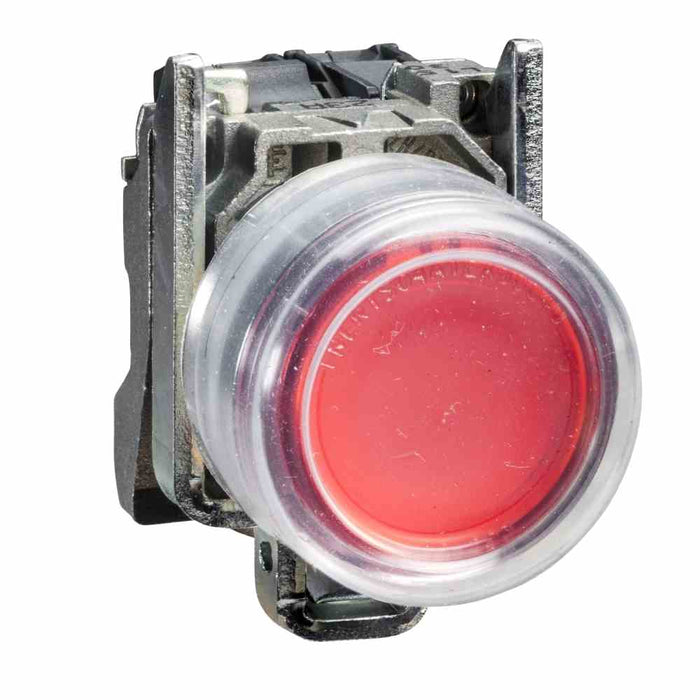

XB4 Pbutton Projecting 22mm Red Spr Ret Booted Unmarked 1NO
Schneider Electric

XB4 Pbutton Projecting 22mm Red Spr Ret Booted Unmarked 1NO

Ideal part number SCHXB4BP42 Manufacturer number XB4BP42 Barcode 3389110887013
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

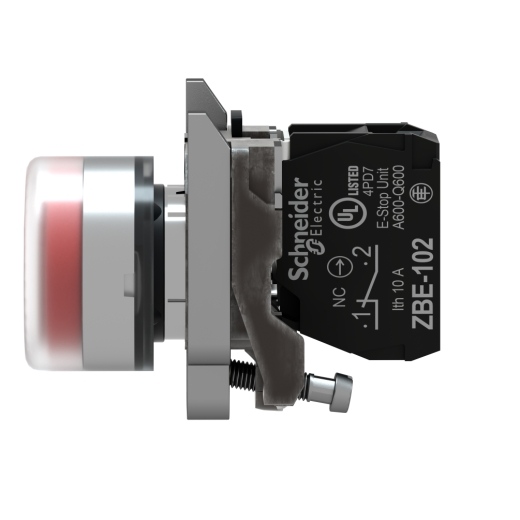

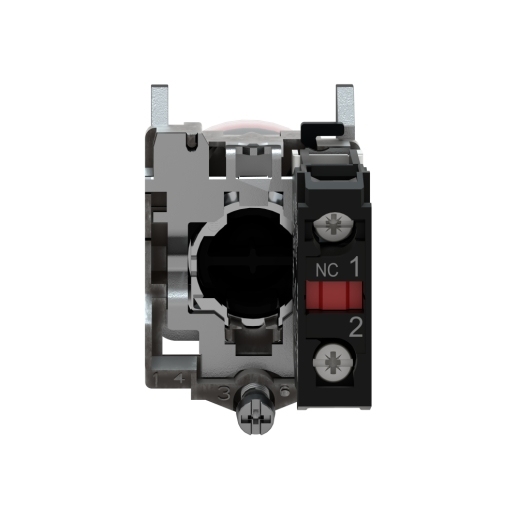

Harmony XB4 Push button metal projecting red Ø22 spring return booted unmarked 1 NC

This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colours and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
no
Number of command positions
1
Spring-return
yes
Type of button
High
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
IP66 (Ip: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
