XB4 E Stop Switch Off Red Mroom(40) 22mm Turn to Release 2NC
Schneider Electric

XB4 E Stop Switch Off Red Mroom(40) 22mm Turn to Release 2NC

Ideal part number SCHXB4BS8444 Manufacturer number XB4BS8444 Barcode 3389110959000
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

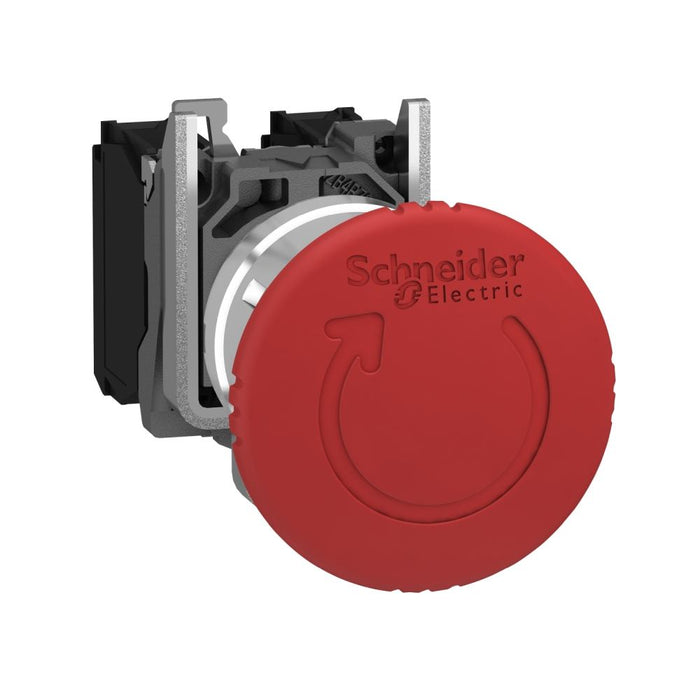

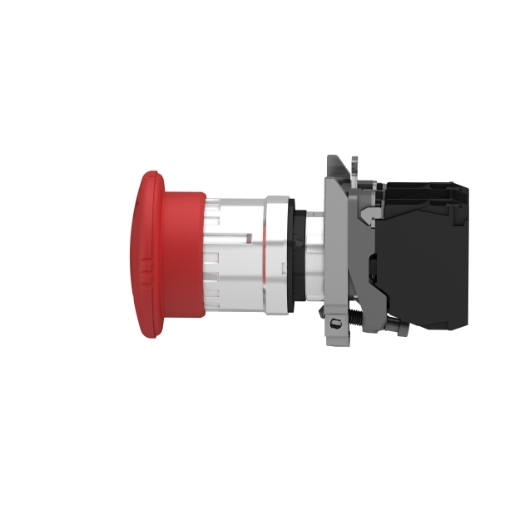

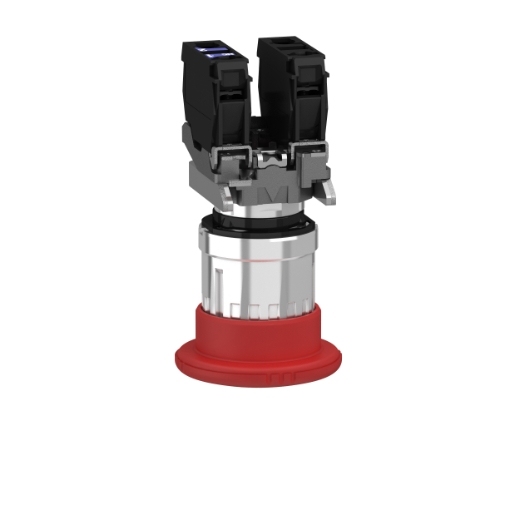

Harmony XB4 Emergency stop switching off metal red mushroom Ø40 Ø22 trigger latching turn to release 2 NC

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched-turn-to-release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear colour and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Mounting method
Built-in
Hole diameter
22 mm
Unlocking method
Turn unlatching mechanism
Diameter cap
40 mm
With lighting
no
Degree of protection
IP66 (Ip: IP66)
Connection type auxiliary circuit
Screw connection
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
