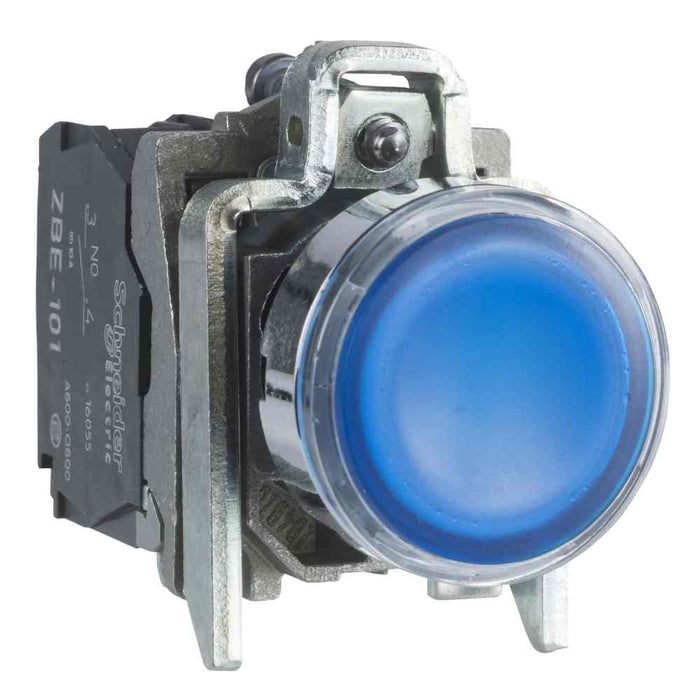

XB4 Pbutton Illum Flush Spring Ret 22mm Blue 120VAC 1NO/NC
Schneider Electric

XB4 Pbutton Illum Flush Spring Ret 22mm Blue 120VAC 1NO/NC

Ideal part number SCHXB4BW36G5 Manufacturer number XB4BW36G5 Barcode 3389110119763
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB4 Illuminated push button metal flush blue Ø22 spring return 110...120 V AC 1 NO + 1 NC

This Harmony XB4 illuminated modular blue push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications

Hole diameter
22 mm
Colour button
Blue
Suitable for illumination
yes
Number of command positions
1
Spring-return
yes
Type of button
Flat
Colour front ring
Chrome
Type of electric connection
Screw connection
Degree of protection
IP66 (Ip: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Supply voltage lamp
120 V
Switching function latching
no
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
