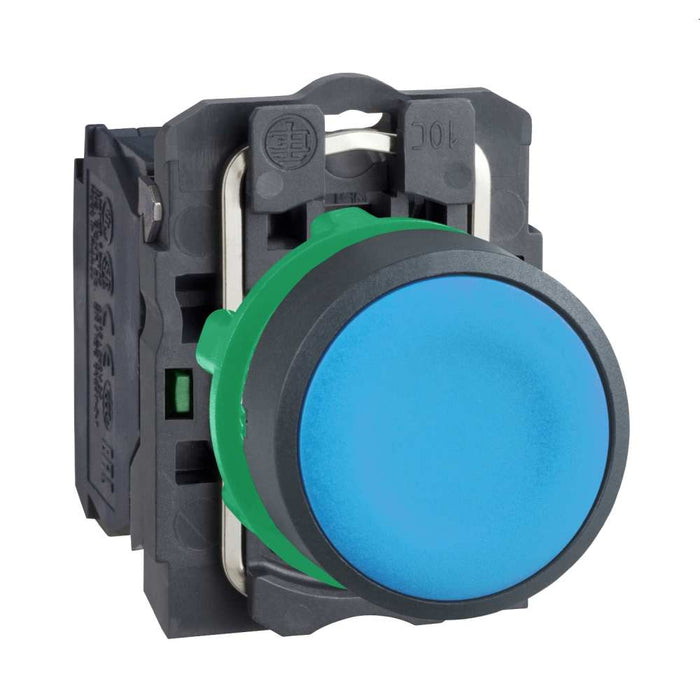

XB5 Pbutton Flush 22mm Blue Spring Return Unmarked 1NO
Schneider Electric

XB5 Pbutton Flush 22mm Blue Spring Return Unmarked 1NO

Ideal part number SCHXB5AA61 Manufacturer number XB5AA61 Barcode 3389110134407
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB5 Push button plastic flush blue Ø22 spring return unmarked 1 NO

This Harmony XB5, modular blue push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colours and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical specifications

Hole diameter
22 mm
Colour button
Blue
Suitable for illumination
no
Number of command positions
1
Spring-return
yes
Type of button
Flat
Colour front ring
Black
Type of electric connection
Screw connection
Degree of protection
IP66 (Ip: IP66)
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Switching function latching
no
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
