XB5 Selector Key Switch 2pos Spr Ret L to R Plastic Blk 1NO
Schneider Electric

XB5 Selector Key Switch 2pos Spr Ret L to R Plastic Blk 1NO

Ideal part number SCHXB5AG61 Manufacturer number XB5AG61 Barcode 3389110134520
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

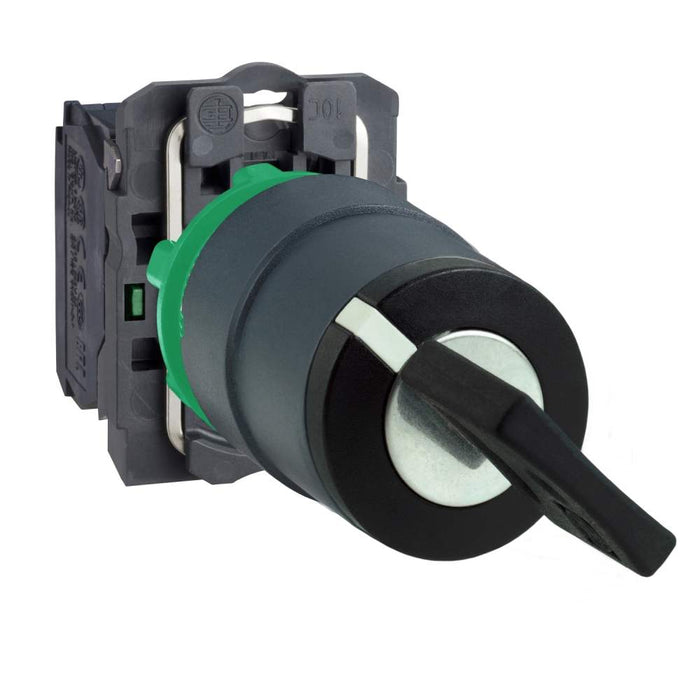

Harmony XB5 Key switch selector plastic black Ø22 key n°455 2 positions spring return right to left 1 NO

This Harmony XB5, modular black key selector switch (key no.455) has 2 positions, operates with a spring-return-to-left mechanism with key withdrawal on the left position and uses screw clamp terminals. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical specifications

Hole diameter
22 mm
Colour button
Black
Number of switch positions
2
Suitable for illumination
no
Spring-return
yes
Colour front ring
Black
Type of electric connection
Screw connection
Supply voltage
230 V
Degree of protection
IP66 (Ip: IP66)
With light source
no
Material front ring
Plastic
With front ring
yes
Type of control element
Key
Switching function latching
no
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
