XB5 Emerg Stop Sw Off Red Mushroom(40mm) 22mm Key 1NO/1NC
Schneider Electric

XB5 Emerg Stop Sw Off Red Mushroom(40mm) 22mm Key 1NO/1NC

Ideal part number SCHXB5AS9445 Manufacturer number XB5AS9445 Barcode 3389110903737
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

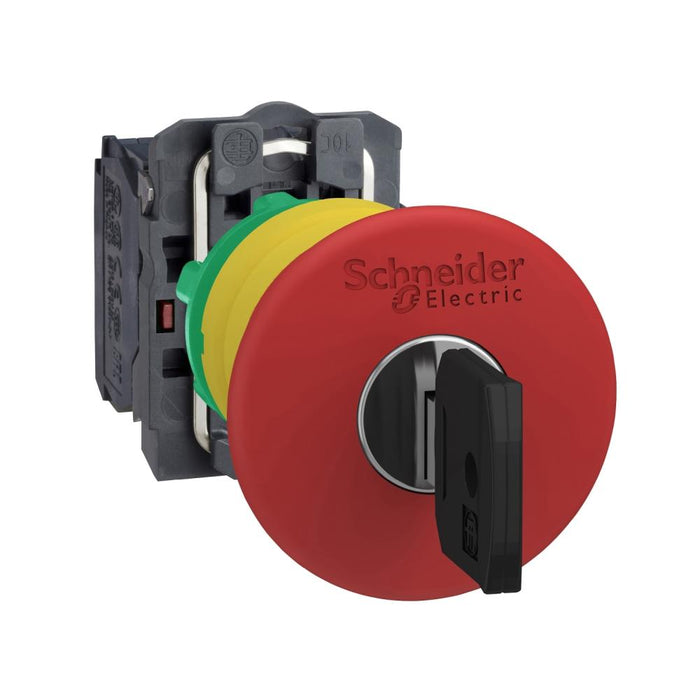

Harmony XB5 Emergency stop switching off plastic red mushroom Ø40 Ø22 trigger latching key release 1 NO + 1 NC

This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear colour and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical specifications

Mounting method
Built-in
Hole diameter
22 mm
Unlocking method
Key-release
Diameter cap
40 mm
With lighting
no
Degree of protection
IP66 (Ip: IP66)
Connection type auxiliary circuit
Screw connection
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
