XB5 Pbutton Illum Flush Spr Ret 22mm Red 24VAC/DC 1NO/NC
Schneider Electric

XB5 Pbutton Illum Flush Spr Ret 22mm Red 24VAC/DC 1NO/NC

Ideal part number SCHXB5AW34B5 Manufacturer number XB5AW34B5 Barcode 3389110904123
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

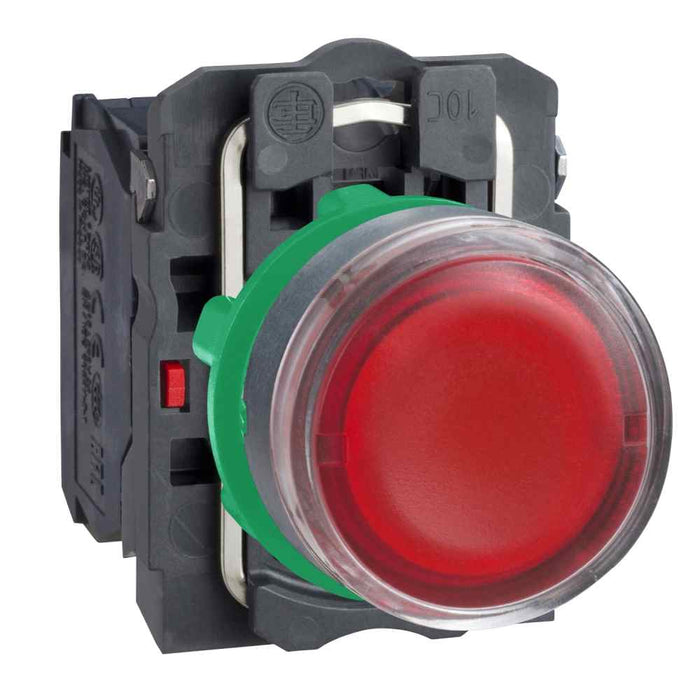

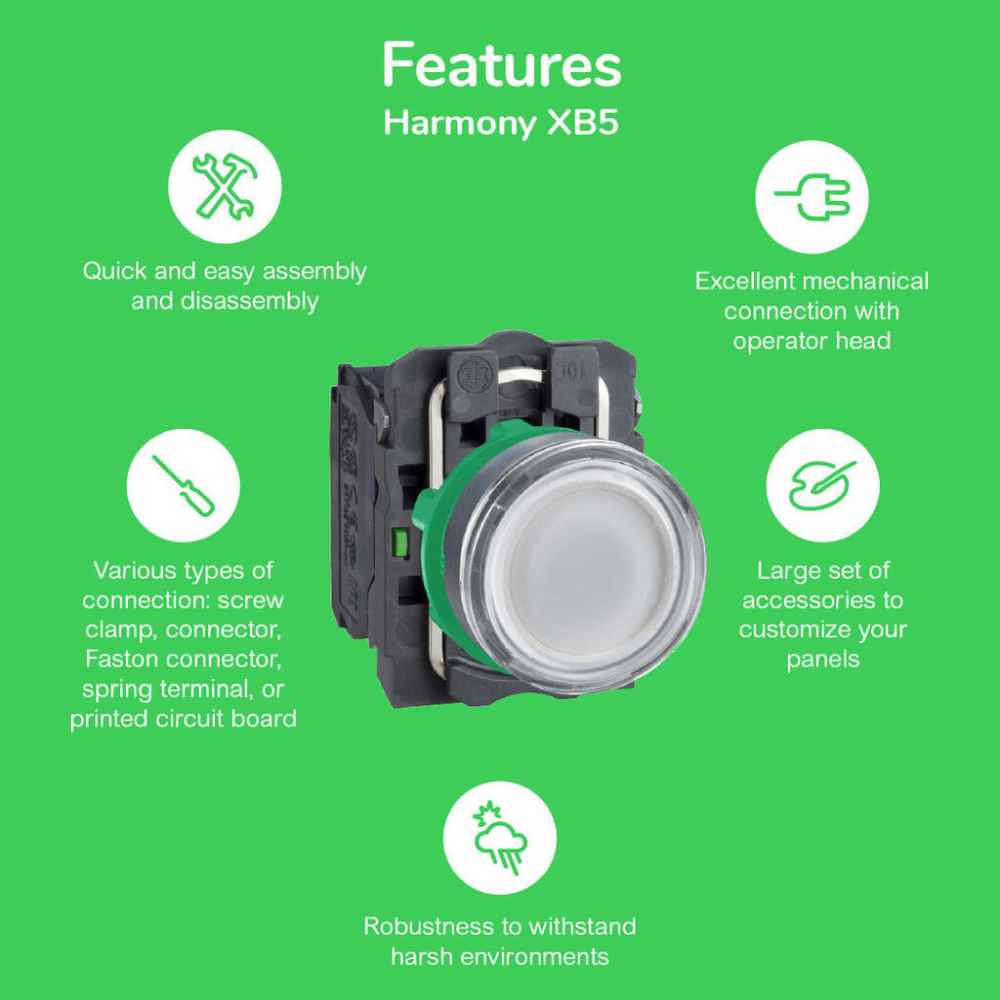

Harmony XB5 Illuminated push button plastic flush red Ø22 spring return 24 V AC/DC 1 NO + 1 NC

This Harmony XB5, illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

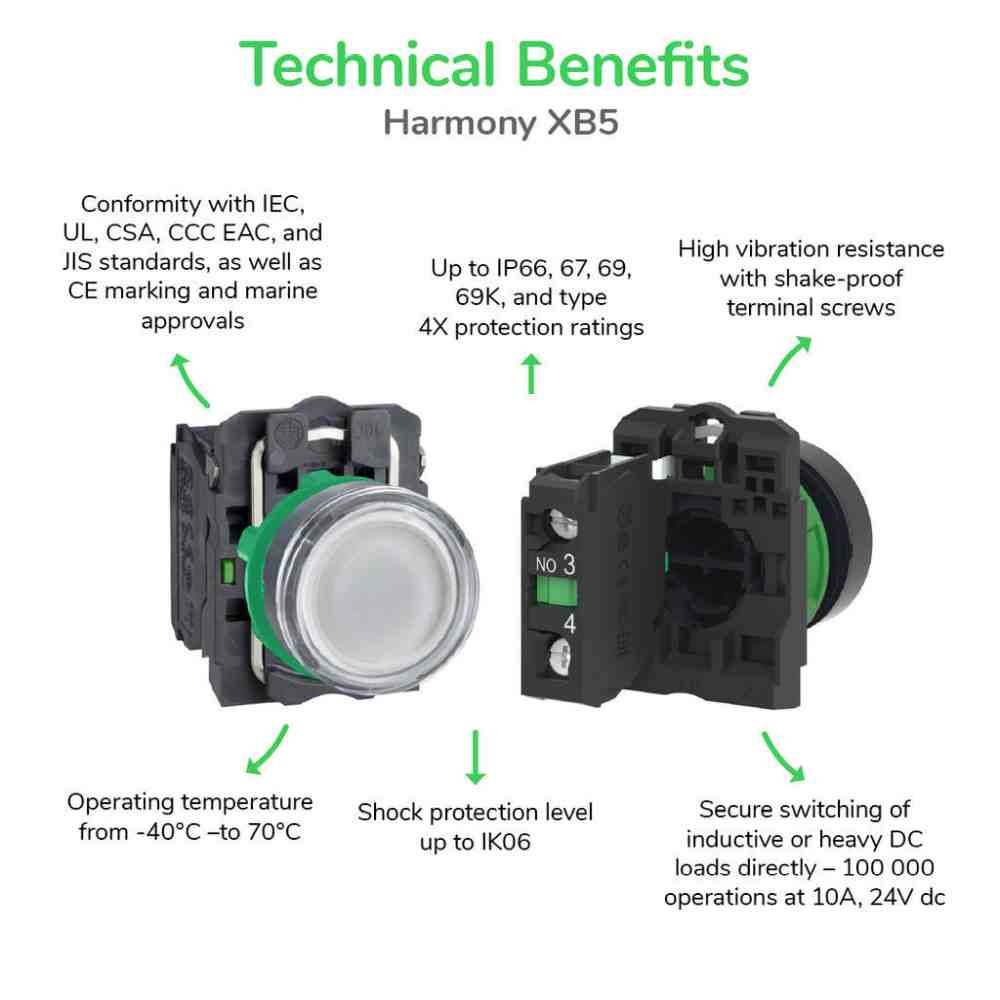

Technical specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
yes
Number of command positions
1
Spring-return
yes
Type of button
Flat
Colour front ring
Black
Type of electric connection
Screw connection
Degree of protection
IP66 (Ip: IP66)
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Supply voltage lamp
24 V
Switching function latching
no
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
