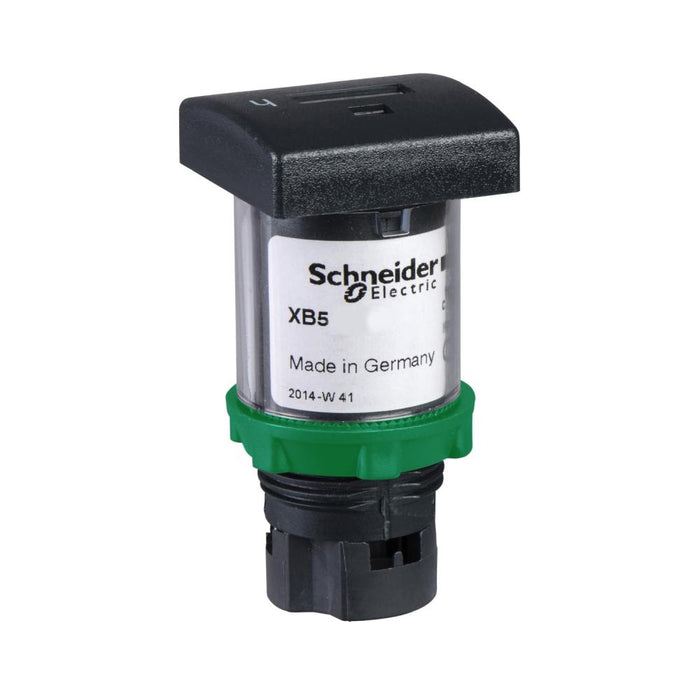

XB5 Hour Counter 22mm Mechanical 5-digit Display 12-24VAC/DC
Schneider Electric

XB5 Hour Counter 22mm Mechanical 5-digit Display 12-24VAC/DC

Ideal part number SCHXB5DSB Manufacturer number XB5DSB Barcode 3389110102550
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB5 Hour counter plastic Ø22 mechanical 5 digit display 12...24 V AC/DC

This Harmony XB5, hour counter has 5 display digits and is supplied with 12V to 24V AC/DC. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Technical specifications

Mounting method
Panel mounting
Width
30 mm
Model
Digital
Height
30 mm
Voltage type
AC/DC
Built-in depth
60 mm
Type of drive
Mains synchronous
Input voltage
12 V
Mounting to max. wall thickness
6 mm
Front plate width
30 mm
Front plate height
30 mm
Diameter panel opening
22 mm
Operation indication
yes
Reset function
None
Count area
9999 h
Degree of protection
IP66 (Ip: IP66)
Number of digits
5
Frequency input voltage
50 Hz
