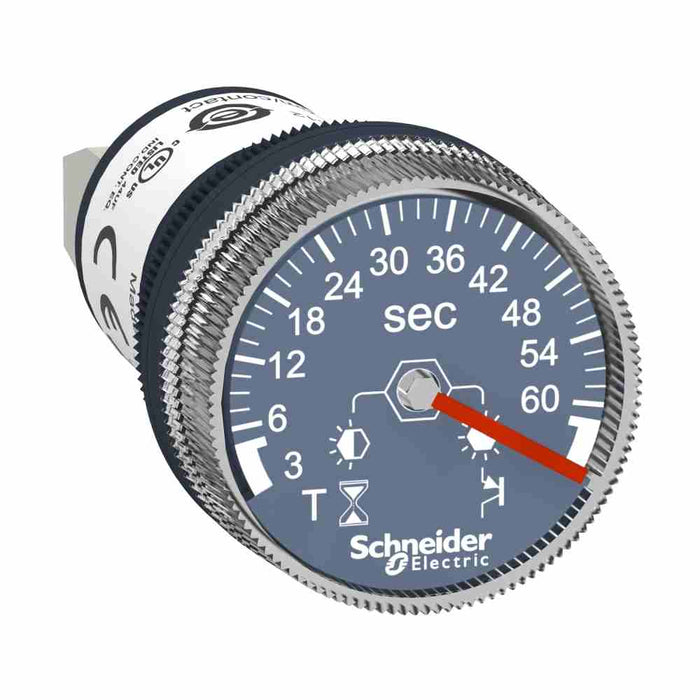

XB5 Timer Monofunction Panel Mnt 22mm Delay 3-60s 24VDC
Schneider Electric

XB5 Timer Monofunction Panel Mnt 22mm Delay 3-60s 24VDC

Ideal part number SCHXB5DTB23 Manufacturer number XB5DTB23 Barcode 3606481205476
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Harmony XB5 Panel mounted timer monofunction plastic Ø22 time delay 3...60 s 24 V DC

This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 seconds and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Technical specifications

Nominal voltage
24 V
Mounting method
Other
Assembly arrangement
Other
Colour
Other
Model
Electronic
Time setting
0.05 min
Material
Plastic
Surface finishing
Not applicable
Suitable for degree of protection
IP65 (Ip: IP65)
Number of modules
1 (Module system: 1)
