XB5 Pilot Light 3Ph Voltage Indicator 3 LED R/G/Y 400VAC

Product Details

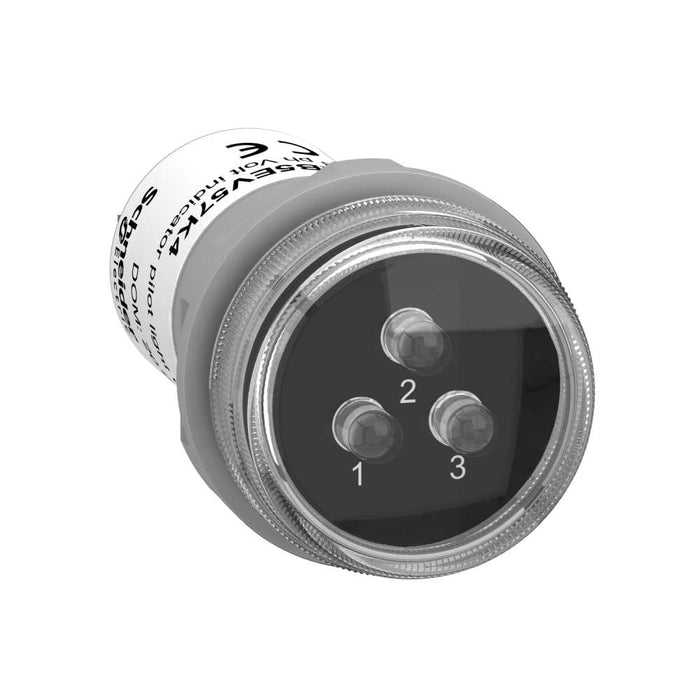

Harmony XB5 Pilot light 3 phases voltage indicator with 3 LED red green yellow 400 V AC

This Harmony XB5, plain lens monolithic red / yellow / green 3-phase voltage presence indicator pilot light, is supplied with a 3-phase 400V AC voltage, uses an integral LED and uses screw clamp terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. It is ideal for incoming section in main and secondary low voltage switchboards, with one coloured LED per phase. It is designed to fit in a standard 22mm cutout.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
31 mm
Voltage type
AC
Colour lens
Other
Number of indicator lights
3
Rated operating voltage Ue
0 V
Type of electric connection
Screw connection
Width opening
29 mm
Height opening
65 mm
Degree of protection
IP55 (Ip: IP55)
Construction type lens
Round
Type of lamp socket
LED
