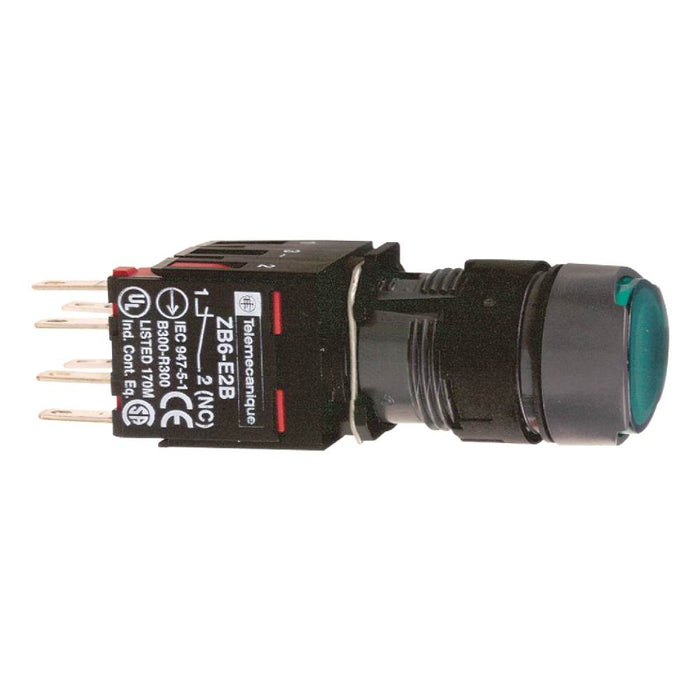

XB6 Pbutton Illum Flush Spring Return 16mm Green 1NO 12-24V

XB6 Pbutton Illum Flush Spring Return 16mm Green 1NO 12-24V

by Schneider Electric

Product Details

XB6 Pushbutton Illuminated Flush Spring Return 16mm Green 1NO 12-24V XB6AW3B1B
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Hole diameter
16 mm
Colour button
Green
Suitable for illumination
yes
Number of command positions
1
Spring-return
yes
Type of button
Flat
Colour front ring
Black
Type of electric connection
Flat plug-in connection
Degree of protection
IP65 (Ip: IP65)
Material front ring
Plastic
With front ring
yes
Construction type lens
Round
Supply voltage lamp
24 V
Switching function latching
no
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
