XB4 Pbutton Head Metal 22mm Flush Red Spr Ret Marked O
Schneider Electric

XB4 Pbutton Head Metal 22mm Flush Red Spr Ret Marked O

Ideal part number SCHZB4BA432 Manufacturer number ZB4BA432 Barcode 3389110887563
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

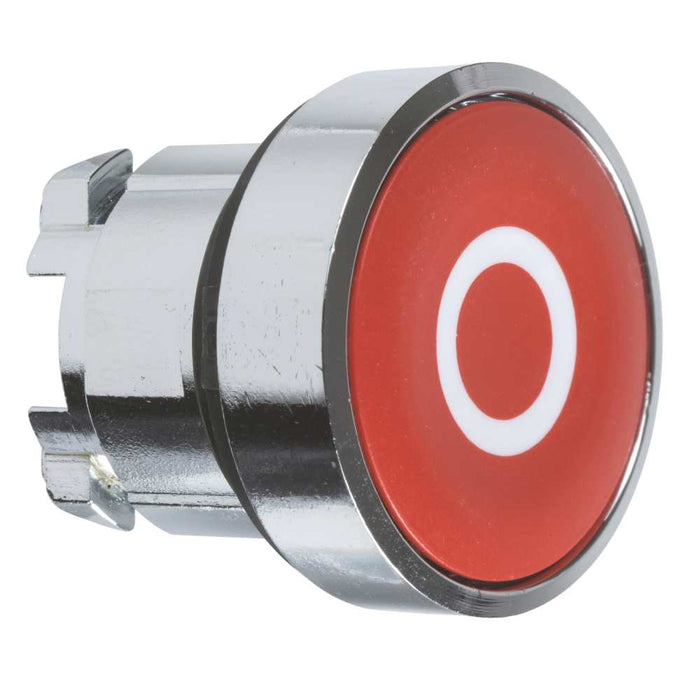

Harmony XB4 Push button head metal flush red Ø22 spring return marked O

This Harmony XB4, flush red button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colour and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
no
Number of command positions
1
Spring-return
yes
Labelled
yes
Type of button
Flat
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
