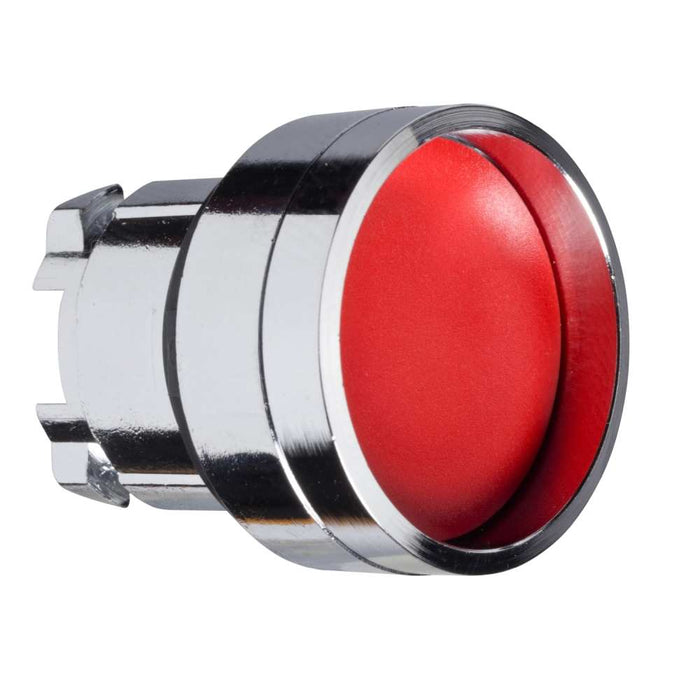

XB4 Pbutton Head Non Ill 22mm Red Recessed Spr Ret Unmarked
Schneider Electric

XB4 Pbutton Head Non Ill 22mm Red Recessed Spr Ret Unmarked

Ideal part number SCHZB4BA46 Manufacturer number ZB4BA46 Barcode 3389110887945
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Head for non illuminated push button Harmony XB4 red recessed pushbutton Ø22 mm spring return unmarked

This Harmony XB4, recessed high guard red button head operates with a spring return / impulse mechanism. This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear colour. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical specifications

Hole diameter
22 mm
Colour button
Red
Suitable for illumination
no
Number of command positions
1
Spring-return
yes
Labelled
no
Type of button
Other
Colour front ring
Chrome
Degree of protection
IP66 (Ip, front side: IP66)
Material front ring
Metal
With front ring
yes
Construction type lens
Round
Switching function latching
no
